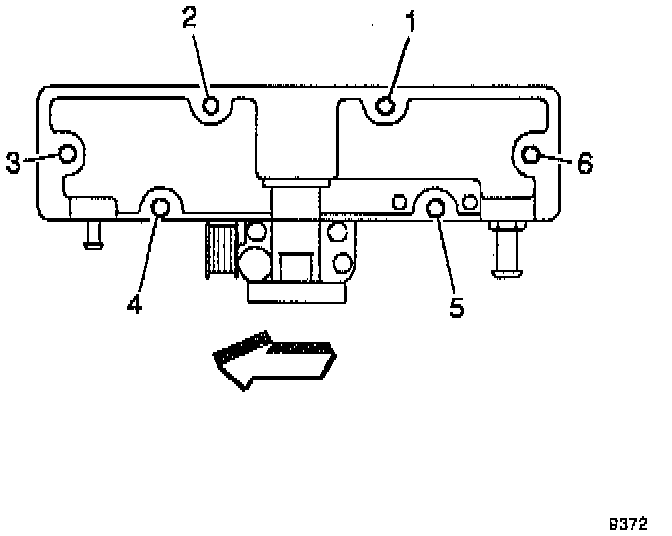

Fastener Tightening Specifications - Intake Manifold

Lower Intake Manifold Studs: 10 Nm (89 lb in)





Lower Intake Manifold Nuts: 33 Nm (24 lb ft)





Upper Intake Manifold Bolts: 30 Nm (22 lb ft)
