Cabin Temperature Sensor / Switch: Service and Repair

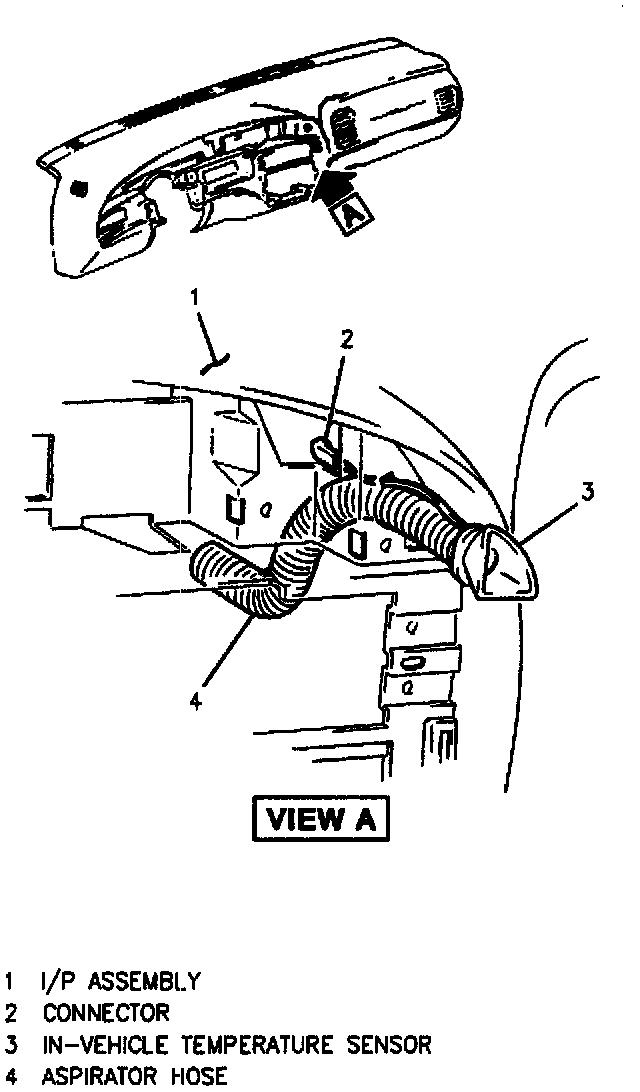

Inside Air Temperature Sensor:






Remove or Disconnect

1. IP lower trim plate (snap out).
2. Gain control electrical connector (if equipped).
3. IP cluster trim plate screws.
4. Electrical connector from cigar lighter.
5. Screws retaining head/park lamp switch rod.
6. IP cluster trim plate after releasing head/park lamp switch rod.
7. Aspirator tube and electrical connector from sensor.
8. Inside temperature sensor from vehicle.

Install or Connect

1. Electrical connector and aspirator tube after positioning sensor.
2. Screws retaining head/parklamp switch.
3. Retaining screws after positioning IP cluster trim plate.
4. Gain control electrical connector after positioning IP trim plate.
5. IP trim plate (snaps in).
