Oil Pump Pipe and Screen Assembly Installation

OIL PUMP PIPE AND SCREEN ASSEMBLY INSTALLATION

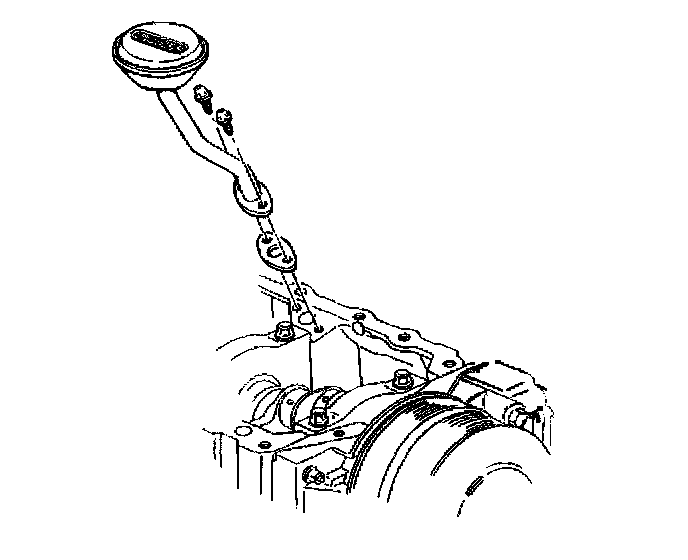

1. Install the oil pump pipe and screen assembly gasket.

IMPORTANT: The oil pan gasket must be installed before the oil pump pipe and screen assembly.

2. Install the oil pan gasket.
3. Install the oil pump pipe and screen assembly.

NOTICE: Refer to Fastener Notice in Service Precautions.

4. Install the oil pump pipe and screen assembly bolts.
^ Tighten the bolts to 15 Nm (11 ft. lbs.).
