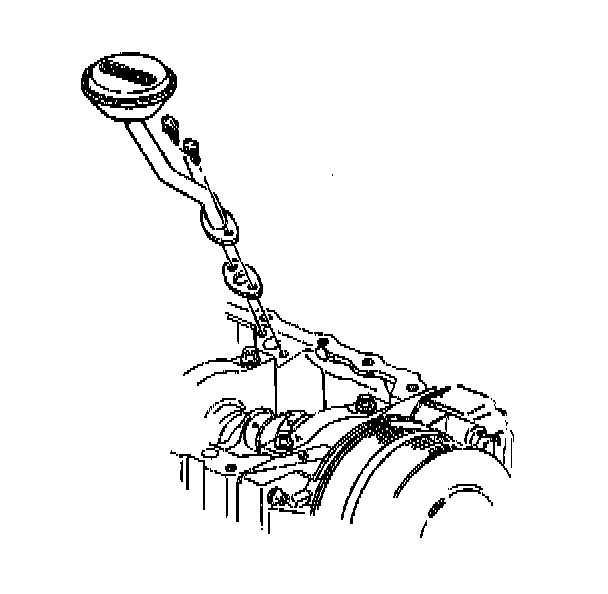

Oil Pump Pipe and Screen Assembly Installation

1. Install the oil pump pipe and screen assembly gasket.
2. Install the oil pan gasket.

IMPORTANT: The oil pan gasket must be installed before the oil pump pipe and screen assembly.

3. Install the oil pump pipe and screen assembly.
4. Install the oil pump pipe and screen assembly bolts.
^ Tighten the bolts to 15 Nm (11 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.
