Lower Intake Manifold Torque and Sequence

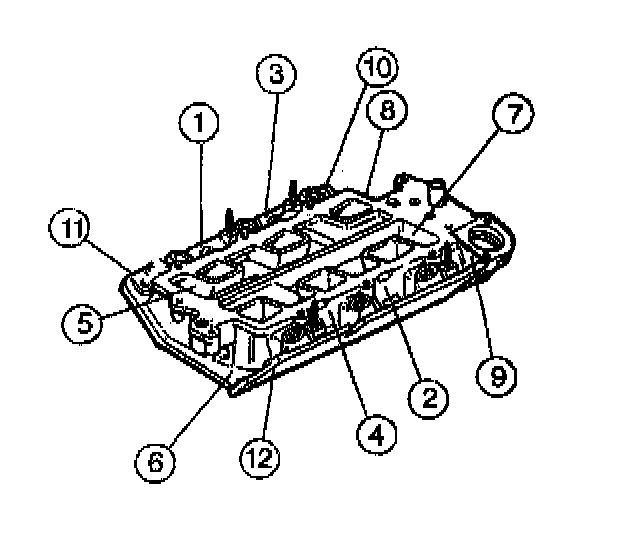

Install the lower intake manifold bolts (1 - 12). Apply threadlock compound GM P/N 12345382 or equivalent to the two hidden bolts and ensure they are installed. Tighten the lower intake manifold bolts in sequence to 15 Nm (11 ft. lbs.).
