Power Window Switch: Service and Repair

Rear Door Power Window Switch Replacement

REMOVAL PROCEDURE

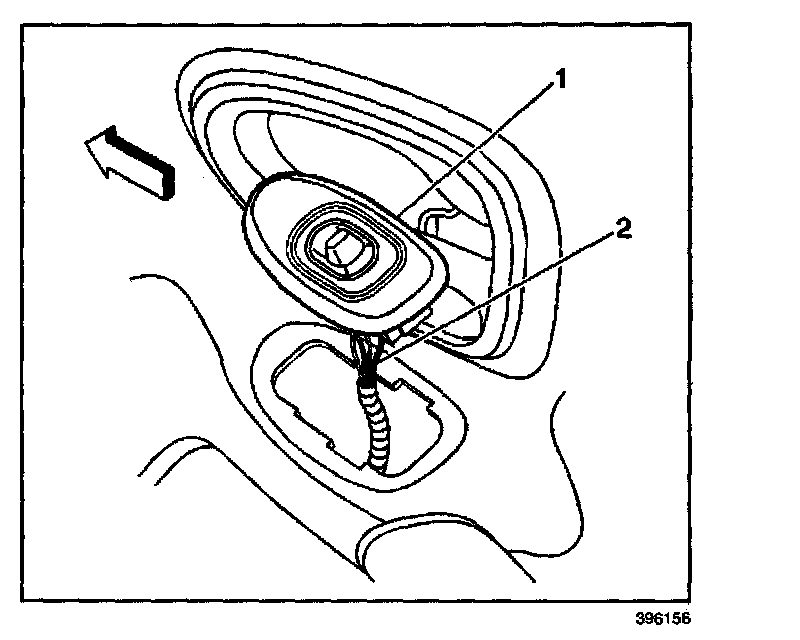

1. Pry at the top of the rear door power window switch (1) using a flat blade screwdriver.
2. Disconnect the wire harness connector (2) from the rear door power window switch.
3. Remove the switch.

INSTALLATION PROCEDURE
1. Position and connect the wire harness connector (2) to the rear door power window switch (1).
2. Install the rear door power window switch (1).
