Electrical Diagrams

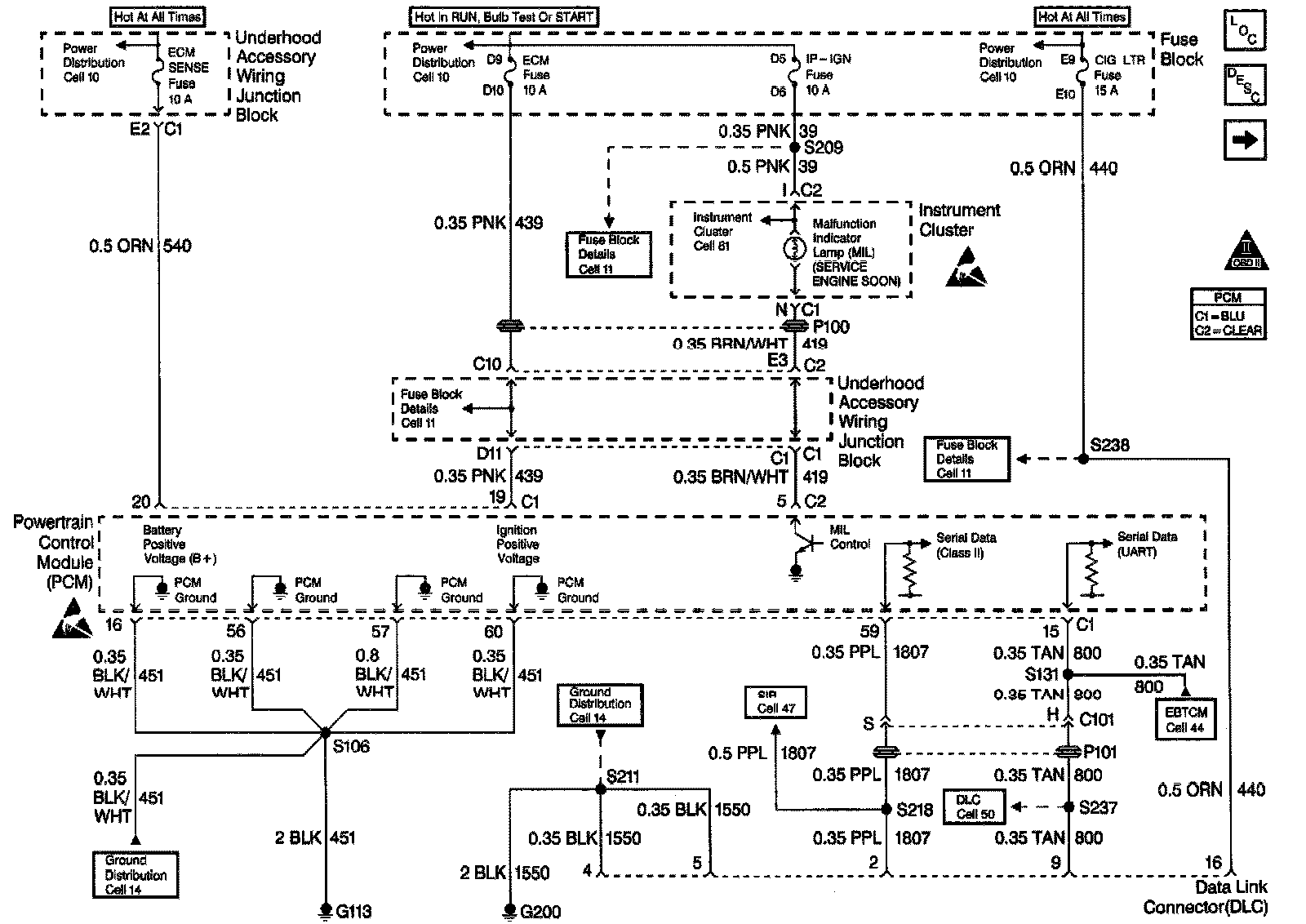

AUTOMATIC TRANSMISSION CONTROLS SCHEMATICS (POWER. GROUND. AND DLC)

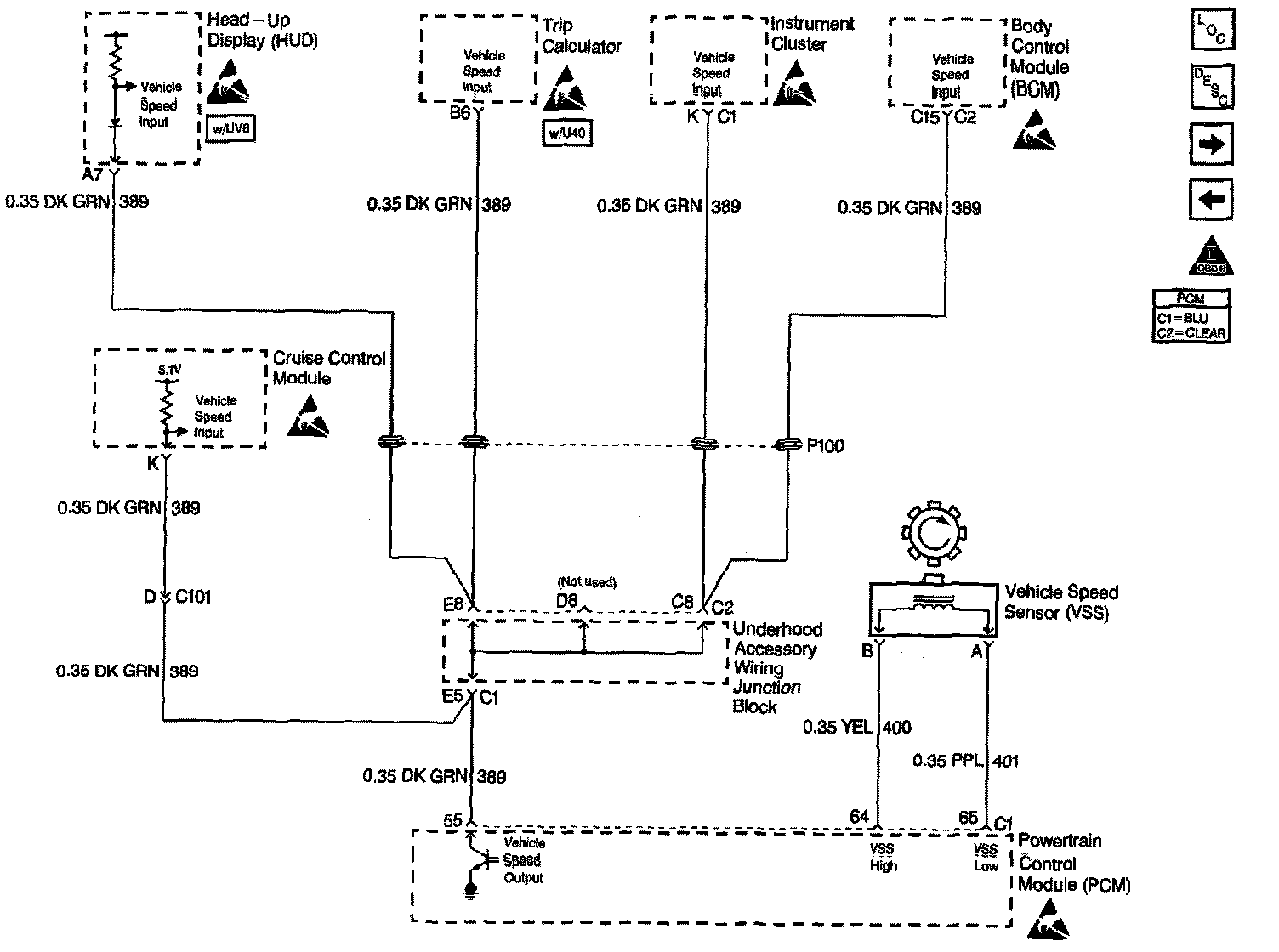

AUTOMATIC TRANSMISSION CONTROLS SCHEMATICS (VSS, AND CRUISE)

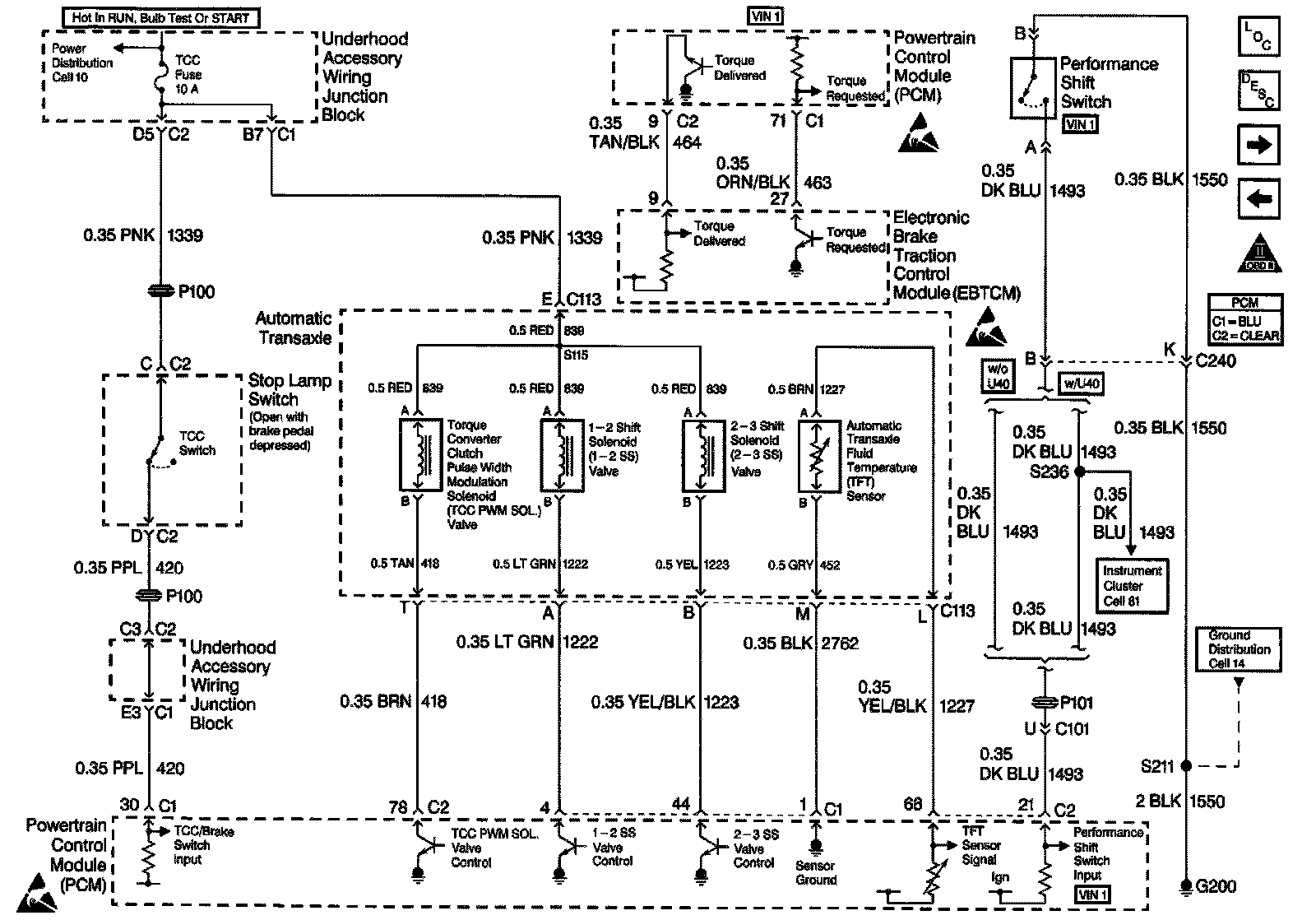

AUTOMATIC TRANSMISSION CONTROLS SCHEMATICS (TCC, AND INTERNAL SOLENOIDS)

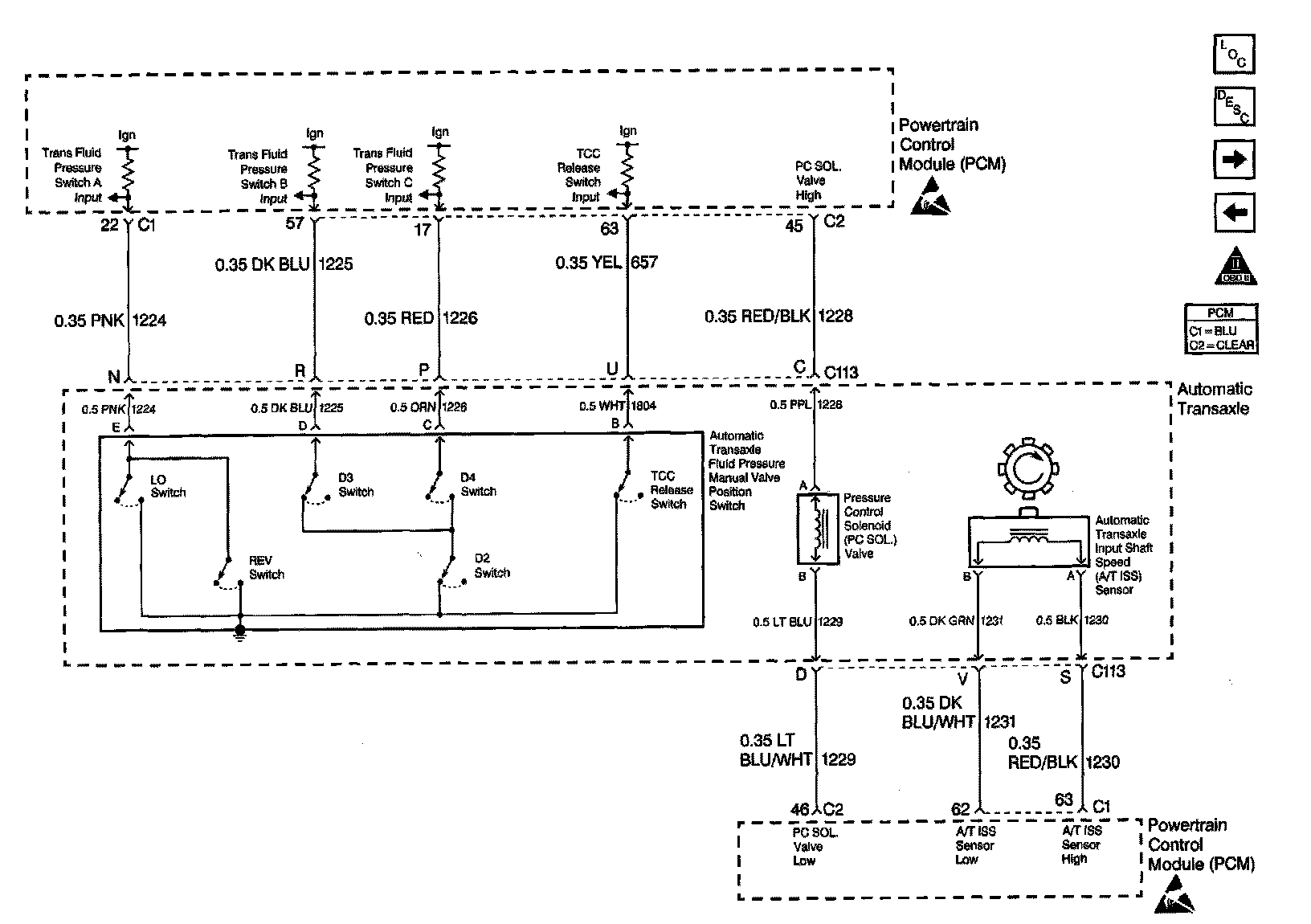

AUTOMATIC TRANSMISSION CONTROLS SCHEMATICS (A/T INPUT SHAFT SPEED SENSOR, AND PC SOLENOID)

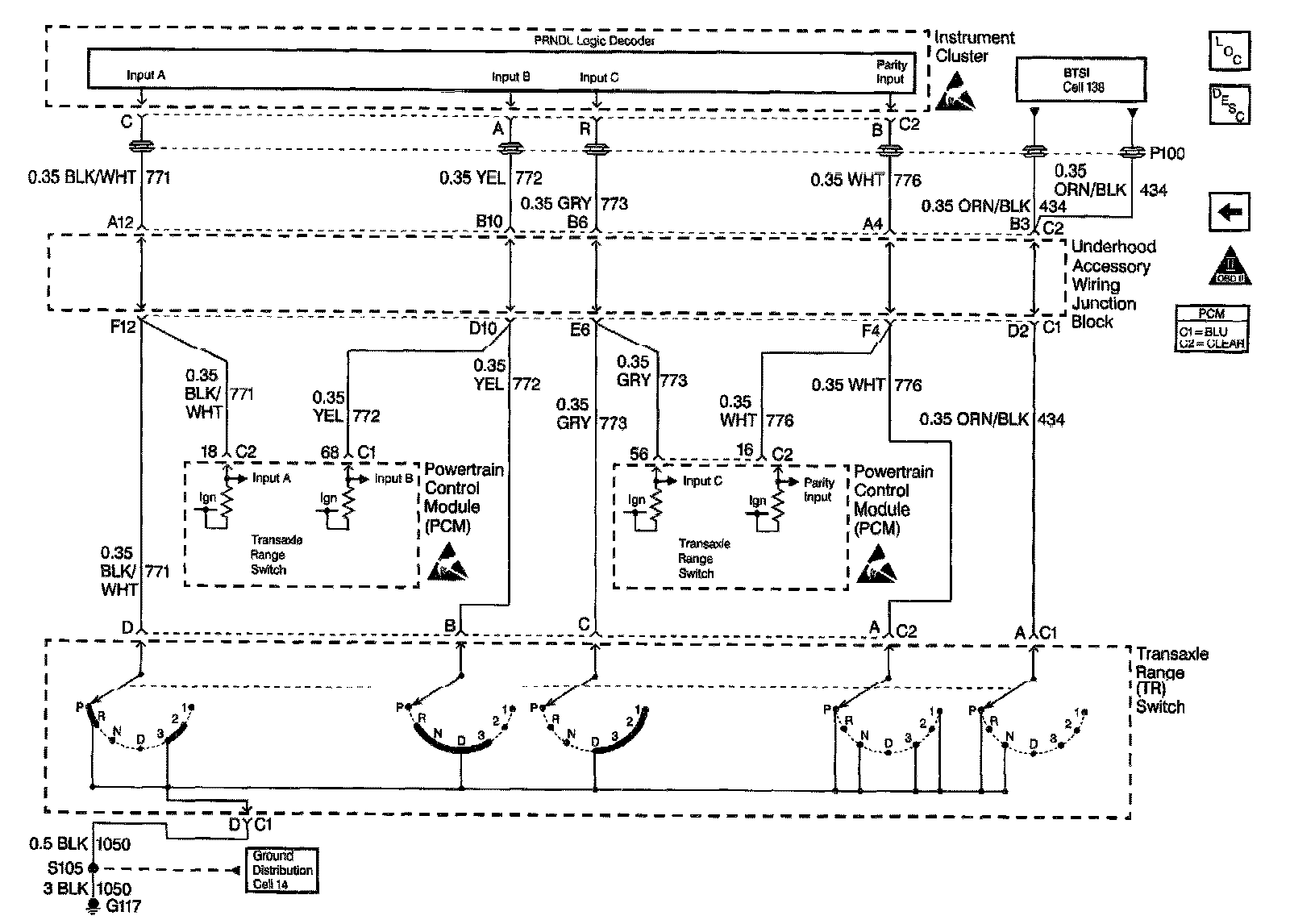

AUTOMATIC TRANSMISSION CONTROLS SCHEMATICS (TRANSMISSION RANGE SWITCH)
