Power Sunroof Module Replacement

REMOVAL PROCEDURE
1. Position the sunroof in the fully closed position.
2. Remove the headliner.
3. Disconnect the electrical connector from the following components:
^ The actuator
^ The express module
4. Disconnect the rear drain hose connections from the sunroof housing.
5. Disconnect the front drain hose connections from the sunroof housing.

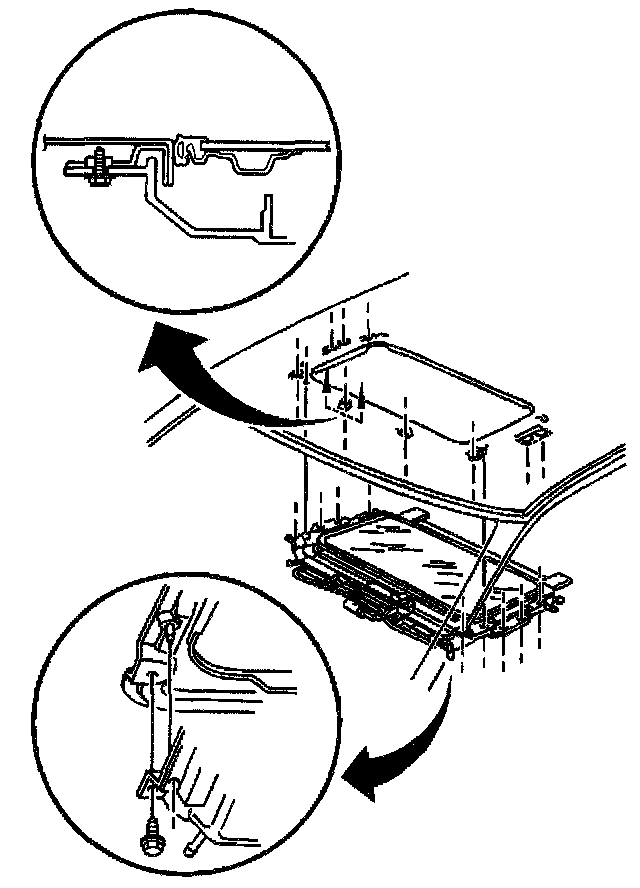

6. Remove the sunroof module bolts.
7. Remove the sunroof module from the vehicle through the door opening.

INSTALLATION PROCEDURE
1. Install the sunroof module to the vehicle through the door opening.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the sunroof module bolts.

Tighten
Tighten the sunroof module bolts to 10 N.m (89 lb in).

3. Connect the front drain hose connections from the sunroof housing.
4. Connect the rear drain hose connections from the sunroof housing.
5. Connect the electrical connector to the following components:
^ The actuator
^ The express module
6. Install the headliner.
7. Check the operation of the sunroof. Refer to Power Sunroof Description. Description and Operation
