Theft Deterrent - Shock Sensor Modes

Feature Customization:

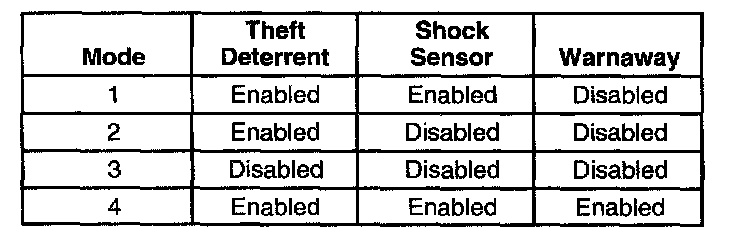

The theft deterrent/ shock sensor modes have the following features:
^ Mode 1
The horn sounds and the headlamps flash for 2 minutes if any of the following actions occur while the content theft deterrent system is armed:
- The shock sensor is triggered.
- Any door is opened.
- The rear compartment lid is opened.
^ Mode 2
The horn sounds and the headlamps flash for 2 minutes if any of the following actions occur while the content theft deterrent system is armed. The system ignores the shock sensor:
- Any door is opened.
- The rear compartment lid is opened.
^ Mode 3
The content theft deterrent system remains disarmed at all times.
^ Mode 4
- The following actions occur if any door or the rear compartment lid is open while the system is armed:
^ The horn sounds.
^ The headlamps flash for 2 minutes.
- The following actions occur if the shock sensor is triggered:
^ The horn sounds.
^ The headlamp flashes five times rapidly.
^ The system rearms.
- The following actions occur when the shock sensor is triggered 5 times:
^ The horn sounds.
^ The headlamps flash for 2 minutes.
