Compressor Clutch Relay: Service and Repair
REMOVAL PROCEDURE 1.
Turn the ignition off.
2.

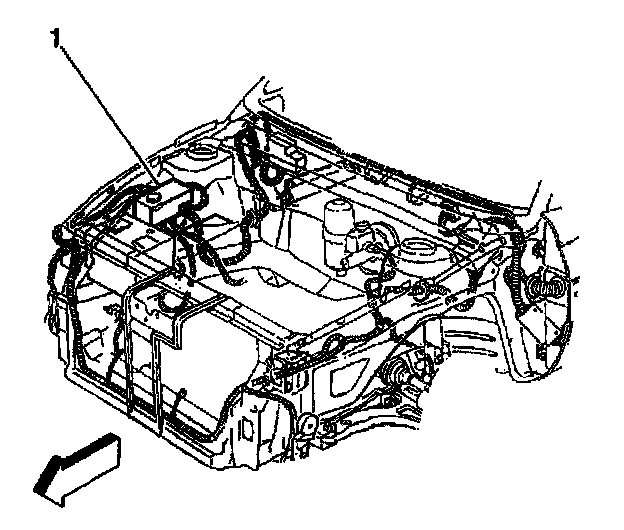

Remove the cover (1) from the underhood electrical center.
3.

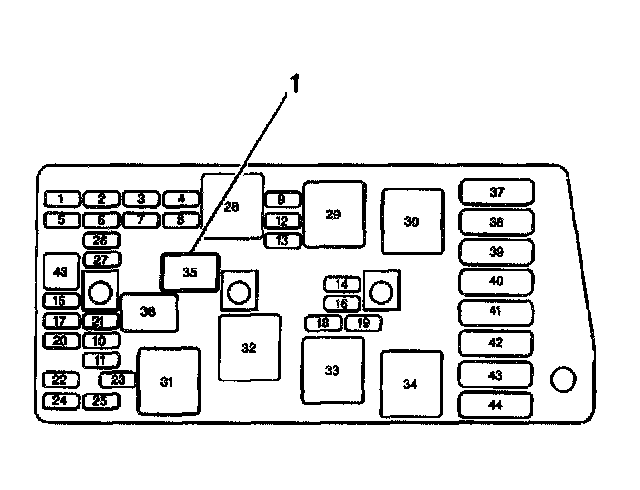

Remove the A/C clutch relay (1) from the underhood electrical center.
INSTALLATION PROCEDURE 1.
Install the
fuel pump relay (1) into the underhood electrical center.
2.

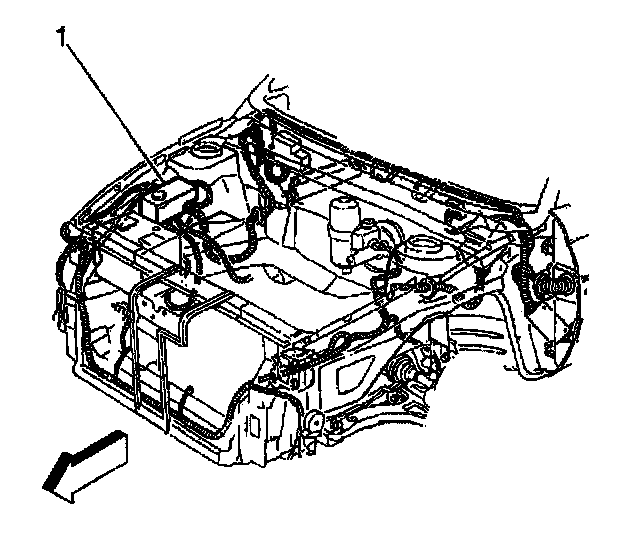

Install the cover (1) to the underhood electrical center.
