Solar Sensor: Service and Repair
REMOVAL PROCEDURE 1.
Remove the defroster grille.
2.

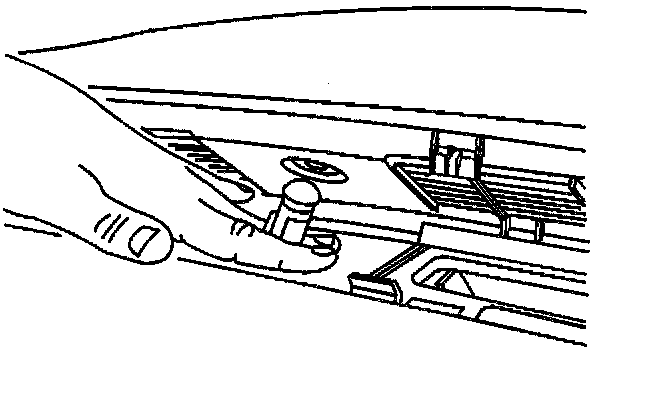

Remove the sensor (2) from the defroster grill by twisting 1/4 turn.
3.
Disconnect the electrical connector from the sunload sensor.
INSTALLATION PROCEDURE 1.
Connect the electrical connector to the sunload sensor.
2.
Install the sensor (2) to the defroster grill by twisting 1/4 turn.
3.
Install the defroster grille.
