Manifold Pressure/Vacuum Sensor: Service and Repair

On VIN K applications, the Manifold Absolute Pressure (MAP) sensor is mounted on the PCV valve cover.

REMOVAL PROCEDURE




1. Turn OFF the ignition.
2. Remove the fuel injector sight shield.

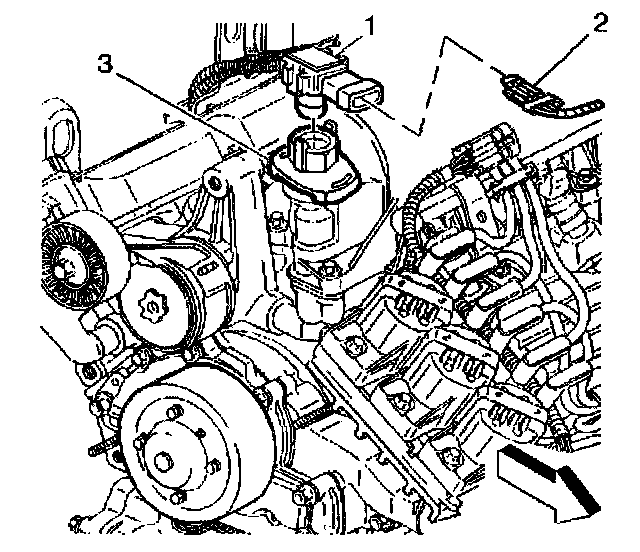

3. Disconnect the electrical connector (2) from the MAP sensor (1).
4. Carefully bend the locking tabs retaining the MAP sensor (1) to the PCV valve cover (3) enough to remove the MAP sensor. Pull the sensor straight out of the PCV valve cover.

INSTALLATION PROCEDURE




1. Ensure that the seal is installed on the MAP sensor and that the seal is not damaged.
2. Position and install the MAP sensor (1) to the PCV valve cover (3). Ensure that the locking tabs engage to hold the MAP sensor to the PCV valve cover.
3. Connect the MAP sensor electrical connector to the MAP sensor (1).




4. Install the fuel injector sight shield.
