Air Register: Service and Repair

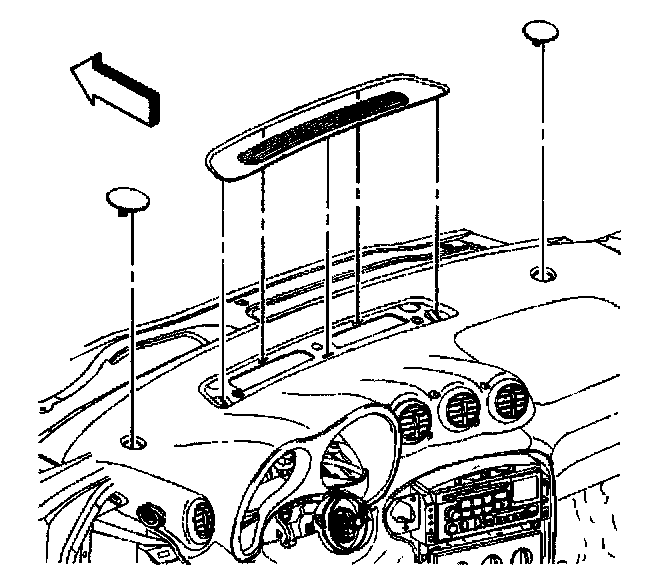

REMOVAL PROCEDURE
1. Unsnap the grill out from the instrument panel.
2. Pull the grill upward.

INSTALLATION PROCEDURE
1. Install the grill to the instrument panel.
2. Snap the grill into place.
