Blower Motor Resistor: Service and Repair

BLOWER MOTOR RESISTOR REPLACEMENT

REMOVAL PROCEDURE

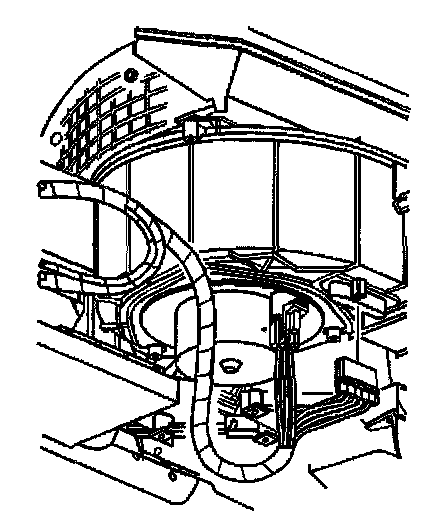

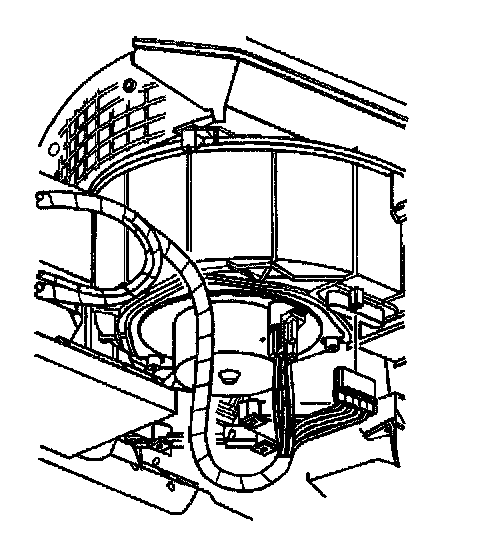

The blower motor resistor is located in the lower right hand corner of the HVAC module. This resistor is located between the blower motor and the front of the dash.




1. Remove the right side instrument panel (IP) insulator.
2. Disconnect the blower resistor electrical connector.

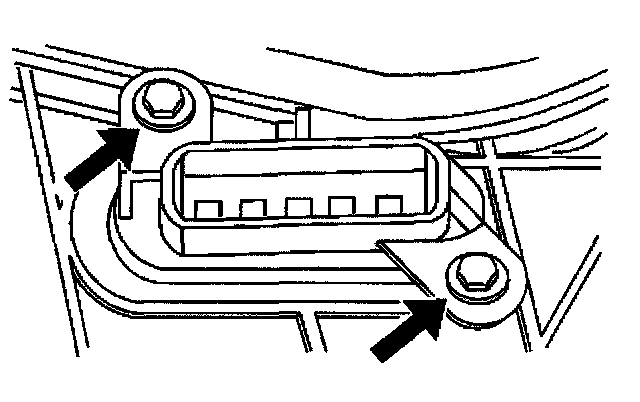

3. Remove the blower resistor screws.
4. Remove the blower motor resistor.

INSTALLATION PROCEDURE




1. Install the blower resistor.

NOTE: Refer to Fastener Notice in Service Precautions.

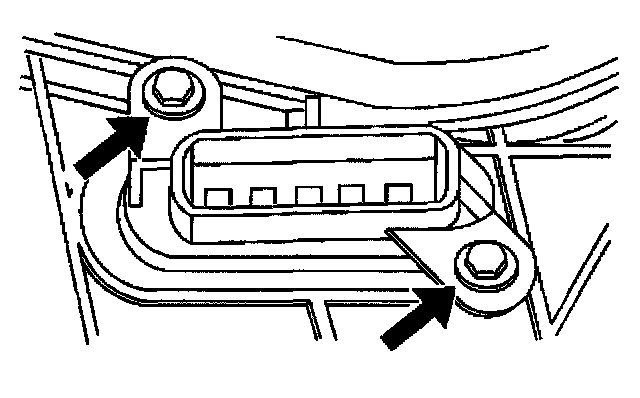

2. Install the blower resistor screws.

Tighten
Tighten the screws to 1 N.m (9 lb in).




3. Connect the blower resistor electrical connector.
4. Install the right side instrument panel (IP) insulator.
