Blower Motor: Service and Repair

BLOWER MOTOR AND FAN REPLACEMENT

REMOVAL PROCEDURE
The blower motor and tan are located in the lower right hand corner of the HVAC module. Service this component as an assembly only.




1. Remove the right side instrument panel (IP) insulator.
2. Move the Body Control Module (BCM) aside. Refer to Body Control Module Replacement in Body Control System.

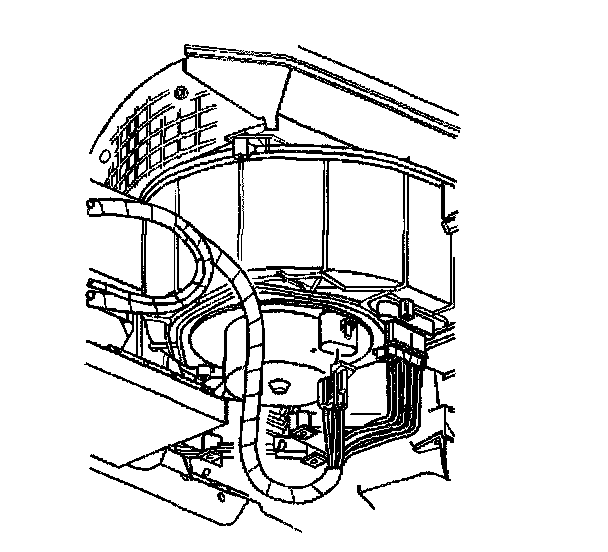

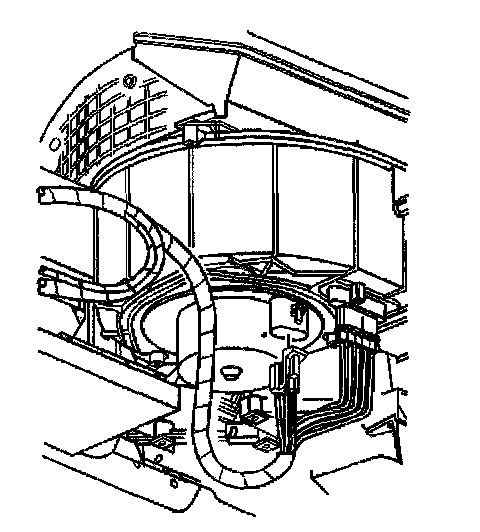

3. Disconnect the blower motor electrical connector.

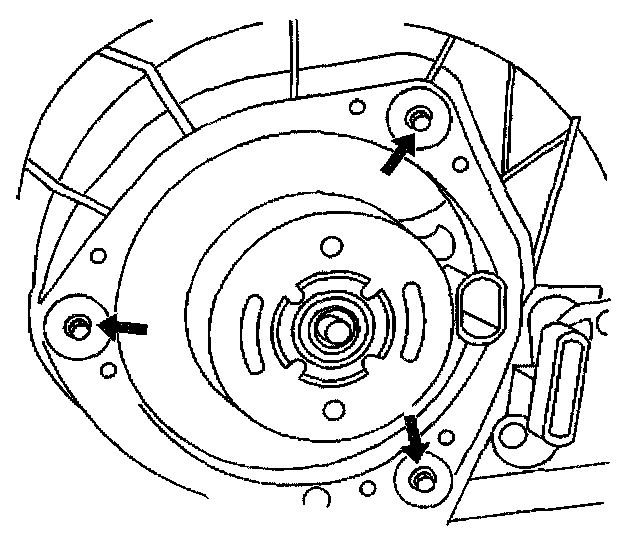

4. Remove the blower motor retaining screws.
5. Remove the blower motor and fan assembly.

INSTALLATION PROCEDURE




1. Install the blower motor and fan assembly.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the retaining screws.

Tighten
Tighten the screws to 5 N.m (45 lb in).




3. Connect the blower motor electrical connector.
4. Install the BCM into position.
5. Install the right side IP insulator.
