Body Control Module: Service and Repair




REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

1. Disconnect the negative battery cable.
2. Remove the right sound insulator.
3. Disconnect the electrical connectors.

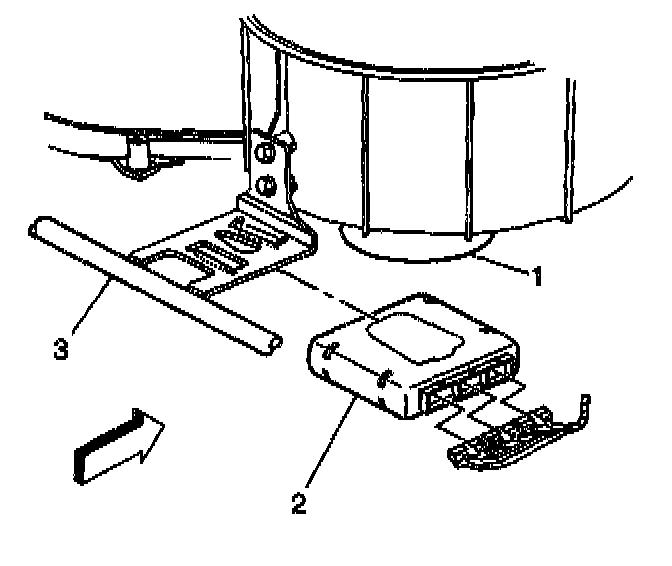

4. Remove the body control module (2) from the bracket.

INSTALLATION PROCEDURE
1. Install the body control module (2) to the bracket.
2. Connect the electrical connectors.
3. Install the right sound insulator.
4. Connect the negative battery cable.
5. Program the new BCM. Refer to BCM Programming/RPO Configuration. Programming and Relearning
