Seat Temperature Switch: Service and Repair



Heated Seat Switch Replacement

Removal Procedure

1. Remove the front floor console trim plate. Refer to Front Floor Console Replacement (Front Floor Console Replacement) in Instrument Panel, Gauges and Console.

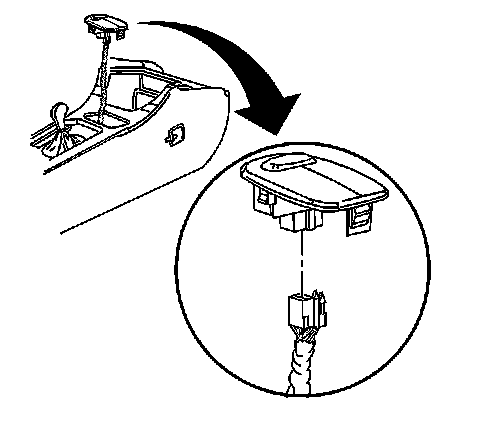

2. Disconnect the electrical connector from the front floor console wiring harness.
3. Remove the front seat heated seat switch, using a small flat-bladed tool to release the retainer clips.
4. Remove the front seat heated seat switch from the front floor console trim plate.



Installation Procedure





1. Install the front seat heated seat switch to the front floor console trim plate, pressing into place until fully seated.
2. Connect the electrical connector to the front floor console wiring harness.
3. Install the front floor console trim plate. Refer to Front Floor Console Replacement (Front Floor Console Replacement) in Instrument Panel, Gauges and Console.
