At Console Shift

Removal Procedure

Caution: Refer to Automatic Transaxle Range Selector Cable Caution in Service Precautions.

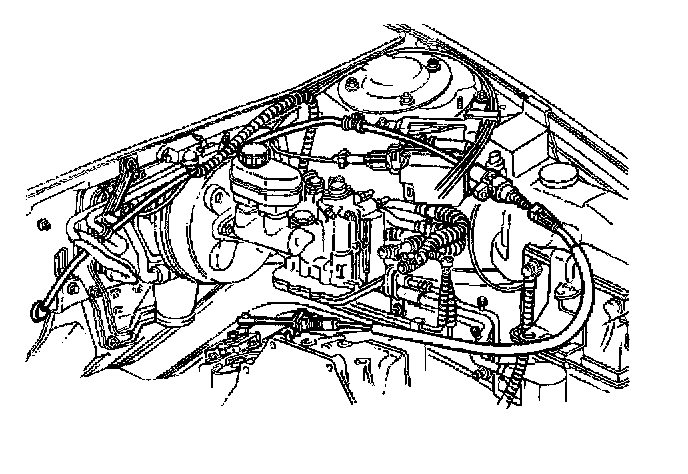

1. Remove the automatic transaxle range selector cable from wiring harness clip(s) or retainer(s) in the engine compartment.
2. Remove the front floor console. Refer to Console Replacement - Front Floor in Instrument Panel, Gauges and Warning Indicators.
3. Pull the carpet back to expose the automatic transaxle range selector cable. Refer to Carpet Replacement - Front in Body and Frame.
4. Remove the automatic transaxle range selector cable from retaining clip(s) or retainer(s) in the passenger compartment.





5. Disengage the automatic transaxle range selector cable retainer to the console shift control.





6. Remove the automatic transaxle range selector cable retainer from the console shift control.





7. Remove the automatic transaxle range selector cable from the console shift control.





8. Remove the automatic transaxle range selector cable through the hole in the cowl.
9. Remove the automatic transaxle range selector cable from the PNP switch. Refer to Automatic Transmission Range Selector Cable Replacement (New Cable Installation Only) or Automatic Transmission Range Selector Cable Replacement (At PNP Switch) or Automatic Transmission Range Selector Cable Replacement (At Console Shift).

Installation Procedure

Caution: Refer to Automatic Transaxle Range Selector Cable Caution in Service Precautions.





1. Properly route and position the automatic transaxle range selector cable.





2. Install the automatic transaxle range selector cable through the hole in the cowl.
3. Install the automatic transaxle range selector cable to the PNP switch. Refer to Automatic Transmission Range Selector Cable Replacement (New Cable Installation Only) or Automatic Transmission Range Selector Cable Replacement (At PNP Switch) or Automatic Transmission Range Selector Cable Replacement (At Console Shift).





4. Install the automatic transaxle range selector cable through the console shift control bracket.





5. Install the automatic transaxle range selector cable to the console shift control.





6. Engage the automatic transaxle range selector cable retainer to the console shift control.
7. Install the automatic transaxle range selector cable to retaining clip(s) or retainer(s) in the passenger compartment.
8. Install the carpet into position. Refer to Carpet Replacement - Front in Body and Frame.
9. Install the front floor console. Refer to Console Replacement - Front Floor in Instrument Panel, Gauges and Warning Indicators.





10. Install the automatic transaxle range selector cable to wiring harness clip(s) or retainer(s) in the engine compartment.
11. Adjust the automatic transaxle range selector cable. Refer to Automatic Transmission Range Selector Cable Replacement (New Cable Installation Only) or Automatic Transmission Range Selector Cable Replacement (At PNP Switch) or Automatic Transmission Range Selector Cable Replacement (At Console Shift) and/or PNP Switch Adjustment.
