Trunk / Liftgate Lock Cylinder: Service and Repair

Rear Compartment Lid Lock Cylinder Replacement (Pontiac)

Removal Procedure

1. Remove the compartment lid applique.




2. Remove the cable assembly (8) from the compartment lid latch.

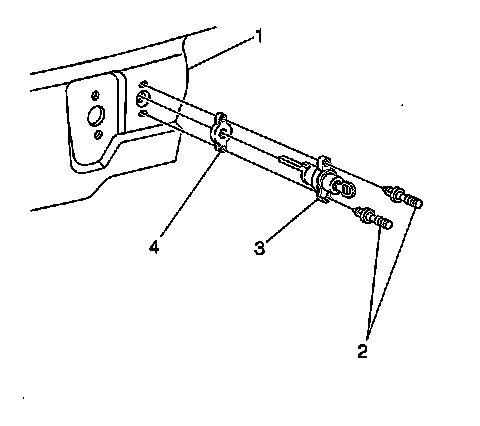

3. Remove the lock cylinder rivets (2).
4. Remove the lock cylinder (3) from the compartment lid.

Installation Procedure




1. Install the lock cylinder (3) to the compartment lid.
2. Install the lock cylinder rivets (2).




3. Install the remote release cable (1) to the lock release box (2).
4. Press and secure the cable door at the top of the lock release box.
5. Install the latch cable assembly (8).
6. Install the compartment lid applique.
