Heating, Ventilation and Air Conditioning

CONTROL ASSEMBLY REPLACEMENT

REMOVAL PROCEDURE




1. Remove the accessory trim plate.

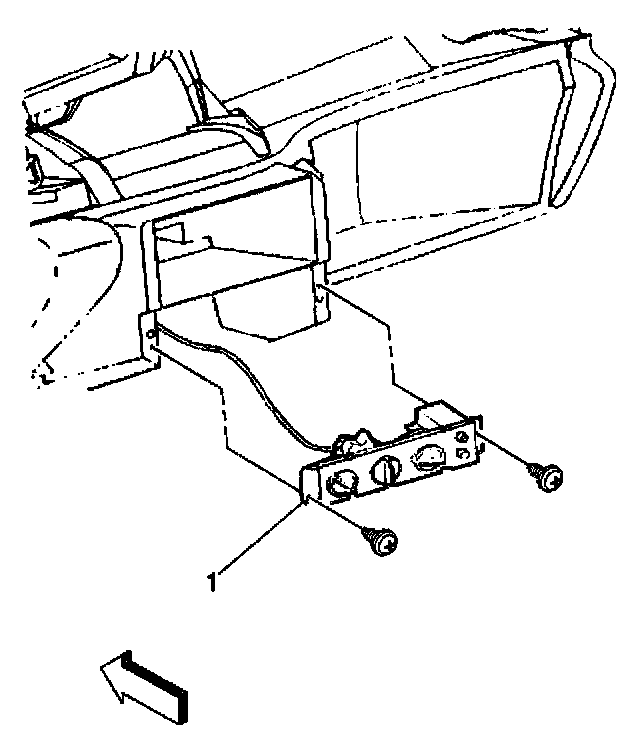

2. Remove the heater control (1) retaining screws.
3. Pull the heater control (1) away from the instrument panel.
4. Disconnect the electrical connections.
5. Disconnect the vacuum hoses.
6. Disconnect the temperature blend cable.

INSTALLATION PROCEDURE




1. Connect the electrical connections.
2. Connect the temperature blend cable.
3. Connect the vacuum hoses.
4. Install the heater control (1) to the instrument panel.

NOTE: Refer to Fastener Notice in Service Precautions.

5. Install the heater control retaining screws.

Tighten
Tighten the screw to 2 N.m (18 lb in).

6. Install the accessory trim plate.
