Fog/Driving Lamp Switch: Service and Repair

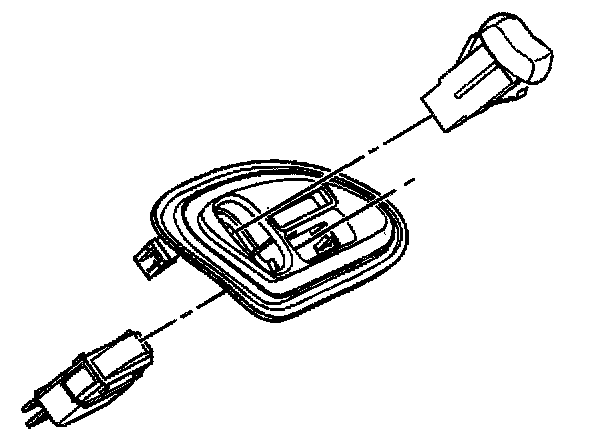

Location View:
REMOVAL PROCEDURE 1.
Use a flat blade tool in order to unsnap the interior lamp control assembly from the Instrument panel.
2.
Disconnect the electrical connector.
3.
Remove the fog lamp switch.
INSTALLATION PROCEDURE 1.
Install the fog lamp switch.
2.
Connect the electrical connectors.
3.
Install the lamp control assembly to the instrument panel.
