Power Window Switch Replacement - Console Mounted

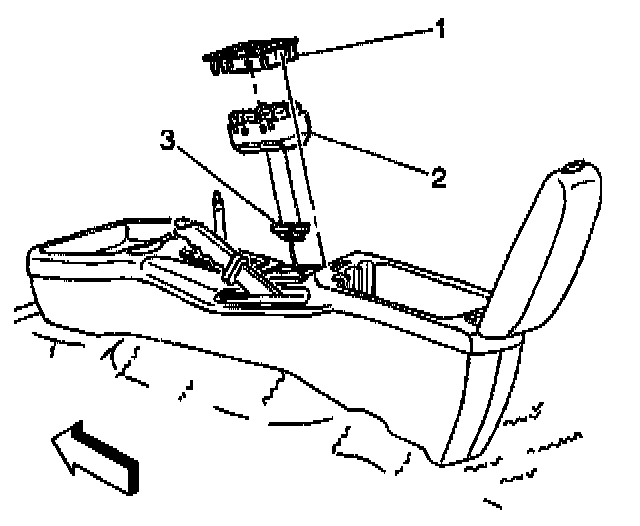

REMOVAL PROCEDURE 1.
Use a flat-bladed tool in order to pry the
power window switch (1) outward.
2.
Disconnect the electrical connector (3).
3.
Remove the
power window switch (2).
INSTALLATION PROCEDURE 1.
Connect the electrical connector (3).
2.
Install the
power window switch (2).
Ensure the unit is retained.
