Power Window Switch Replacement




REMOVAL PROCEDURE
For convertibles only, Refer to Console Replacement (Chevrolet) or Console Replacement (Pontiac).

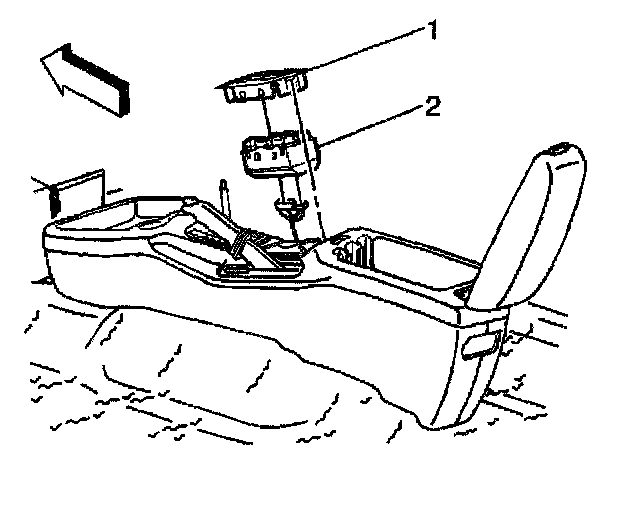

1. Use a flat-biaded screwdriver in order to pry the power window switch plate (1) outward.
2. Remove the power window switch assembly (2) from the console.
3. Disconnect the power window switch wire harness.

INSTALLATION PROCEDURE
1. Connect the power window switch wire harness.
2. Install the power window switch (2).
3. Install the power window switch plate (1).
4. Ensure the unit is retained.
