Roof Console Replacement

Roof Console Replacement

Removal Procedure

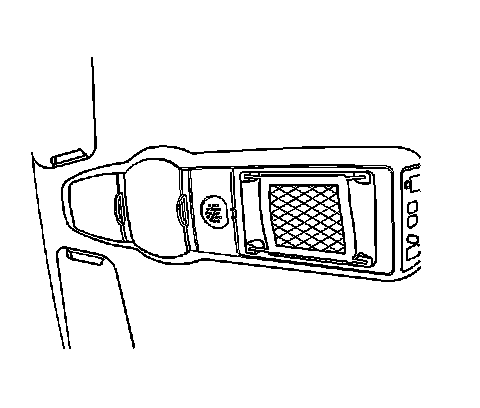

1. Open the overhead storage compartments.
2. Remove the screws.
3. Remove the second seat audio control from the overhead console. Refer to Second Seat Audio Control Replacement in Entertainment.
4. Remove the overhead console from the headliner by pulling in a downward position in order to disengage the retaining clips. Remove the overhead console from the vehicle.
5. Remove the overhead console from the vehicle.

Installation Procedure




1. Install the overhead console to the headliner by pushing up until the retaining clips engage.

Notice: Refer to Fastener Notice (Fastener Notice) in Cautions and Notices.

2. Install the screws to the overhead storage compartment.

Tighten the screws to 2 Nm (18 lb in).

3. Install the second seat audio controls to the overhead console. Refer to Second Seat Audio Control Replacement in Entertainment.
4. Close the overhead compartment storage doors.
