Mirror Face Replacement

REMOVAL PROCEDURE

CAUTION: When working with any type of glass or sheet metal with exposed or rough edges, wear approved safety glasses and gloves In order to reduce the chance of personal Injury.




1. Place your fingers as far as possible behind the mirror face back toward the center of the back.
2. Remove the mirror face from the mirror housing with sufficient force to disengage the snap-fits from the adjuster mechanism.
3. Remove the mirror face from the mirror housing.




4. Inspect the adjuster mechanism for damage.

INSTALLATION PROCEDURE

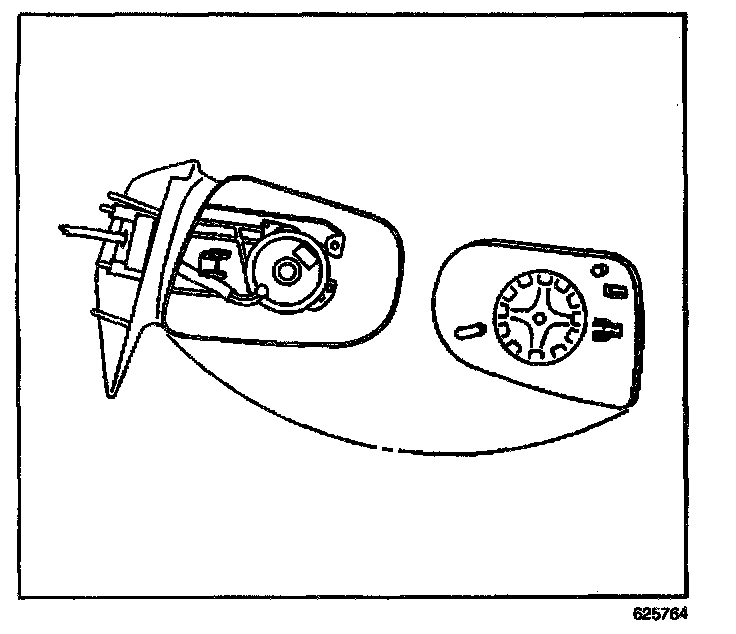

1. Align the mirror face with the adjuster mechanism.

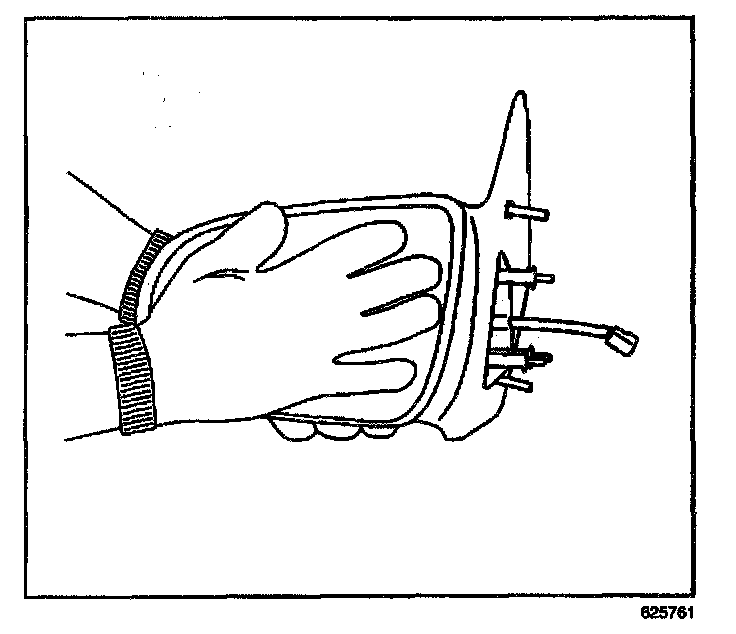

2. Install the mirror face to the adjuster mechanism with the palm of the hand on the center of the glass, pressing in until fully seated.
3. Inspect the mirror for proper operation.
