Rear Camber Adjustment (AWD)

Removal Procedure





1. Raise the vehicle and provide suitable support.
2. Remove the tire and wheel assemblies.

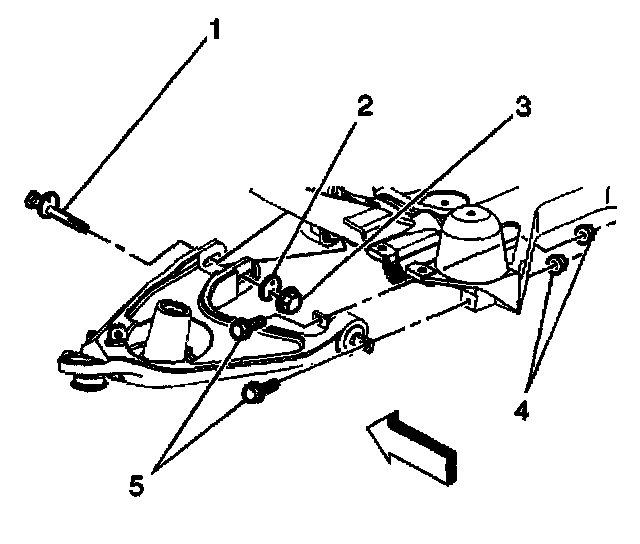

3. Loosen rear lower control arm mounting bolts (5).

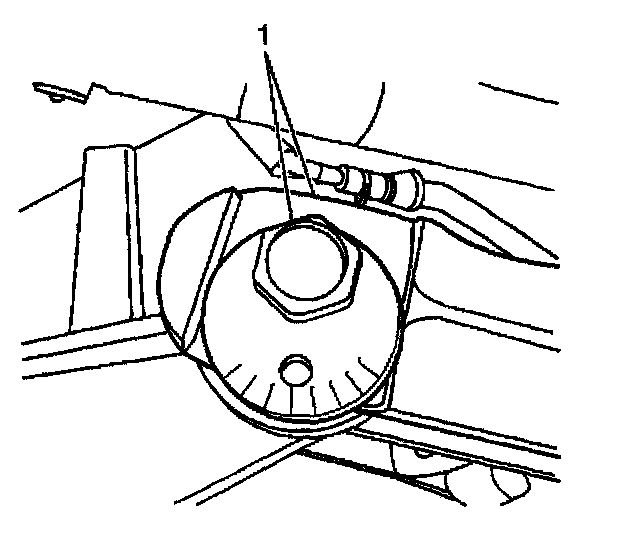

4. Loosen rear lower control arm front Cam bolt (1).
5. Install the tire and wheel assemblies.
6. Adjust camber.

Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.





1. Tighten the lower control arm rear mounting bolts (5).
- Tighten
Mounting bolts 50 Nm (37 ft. lbs.).





2. Tighten rear lower control arm front cam bolt (1).
- Tighten Cam bolt 125 Nm (92 ft. lbs.).
3. Lower the vehicle.
