Power Window Motor: Service and Repair

REFLECTOR REPLACEMENT - FRONT DOOR WARNING

REMOVAL PROCEDURE




1. Open the front door.
2. Apply protective coating/tape at the point of insertion of the flat bladed tool.

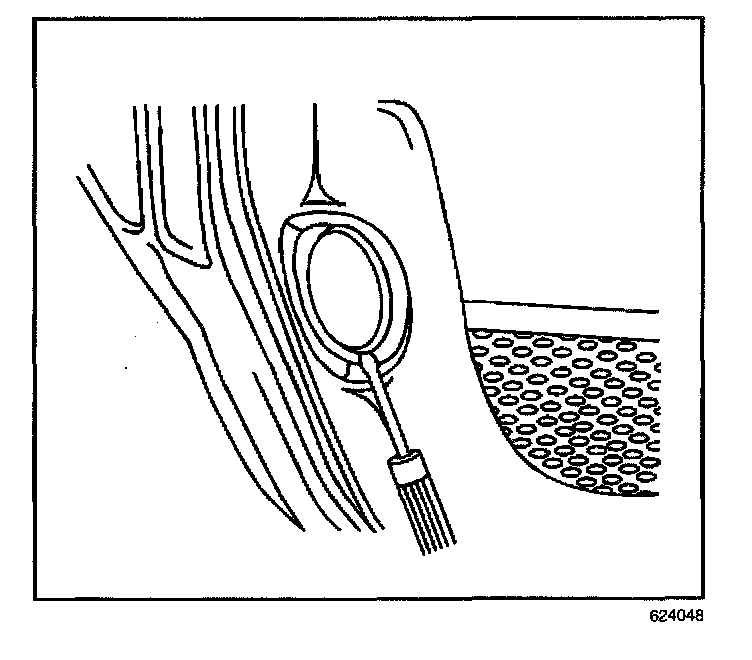

3. Remove the warning reflector from the front door trim panel using a small flat bladed tool, pressing on the tabs from the top of the warning reflector.




4. Remove the warning reflector from the front door trim panel.

INSTALLATION PROCEDURE

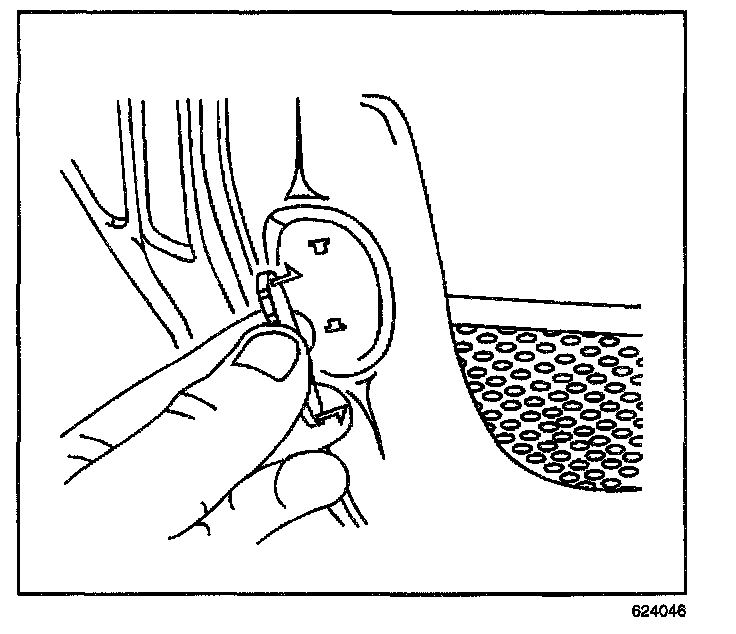

1. Position the warning reflector to the front door trim panel.




2. Install the warning reflector into the front door trim panel pressing in until fully seated.
3. Remove the protective coating/tape from the point of insertion.
4. Close the front door.
