Windshield Washer Hose: Service and Repair

HOSE REPLACEMENT - WINDSHIELD WASHER

REMOVAL PROCEDURE




1. Open the hood.
2. Disconnect the washer hose from the wiper arms.
3. Disconnect the washer hose from the air inlet grille panel.
4. Remove the washer hose grommet from the grille panel.

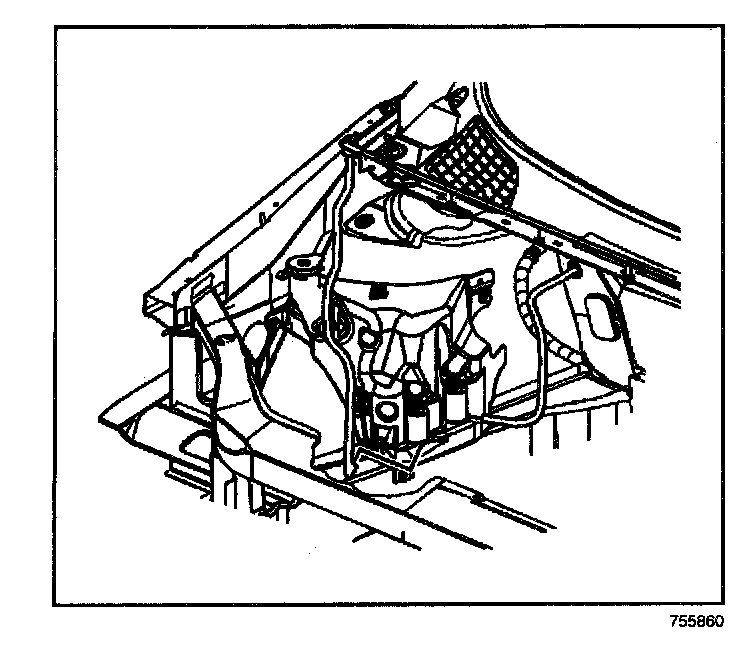

5. Disconnect the washer hose from the washer solvent container neck.
6. Disconnect the washer hose from the washer pump.
7. Remove the washer hose from the vehicle.

INSTALLATION PROCEDURE




1. Position the washer hose to the vehicle.
2. Install the washer hose to the washer pump.
3. Connect the washer hose to the washer solvent container neck.
4. Install the washer hose grommet to the slot in the grille panel.
5. Connect the washer hose to the air inlet grille panel.
6. Connect the washer hose to the wiper arms.
7. Close the hood.
