Engine

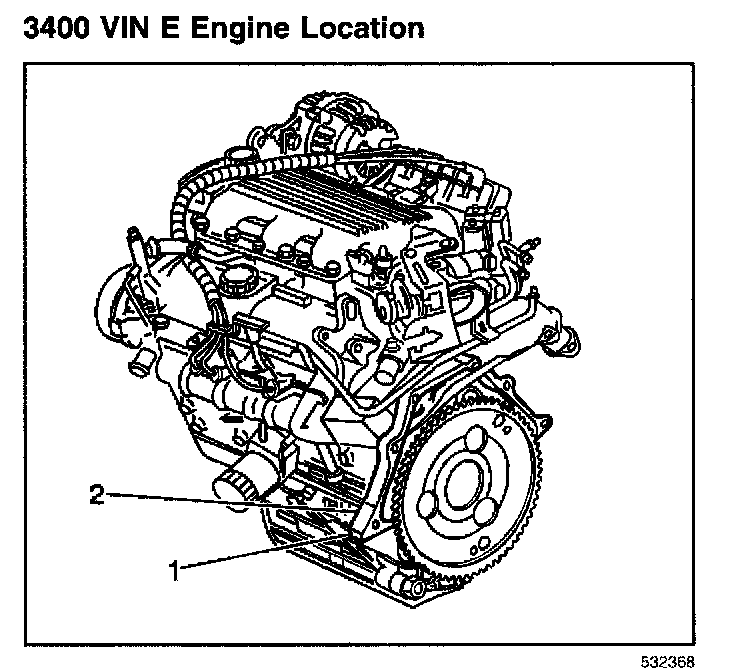

3400 VIN E Engine Location:
The primary (1) and optional (2) location of the VIN derivative for the 3400 LA1 engine is on the lower left front transaxle mounting surface.

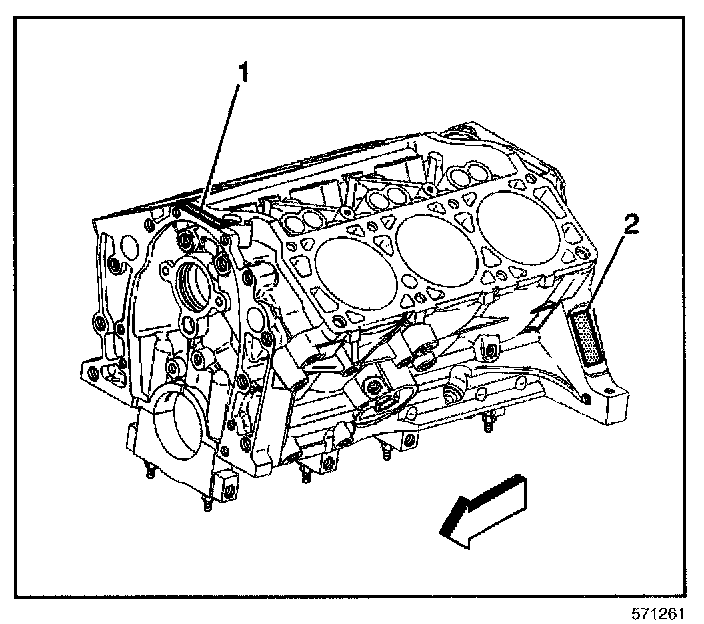

The primary location (1) of the Engine ID for the 3400 LA1 engine is on the top front of the engine block. The optional (2) location is on lower left front transaxle mounting surface.
