Antenna Control Module: Service and Repair

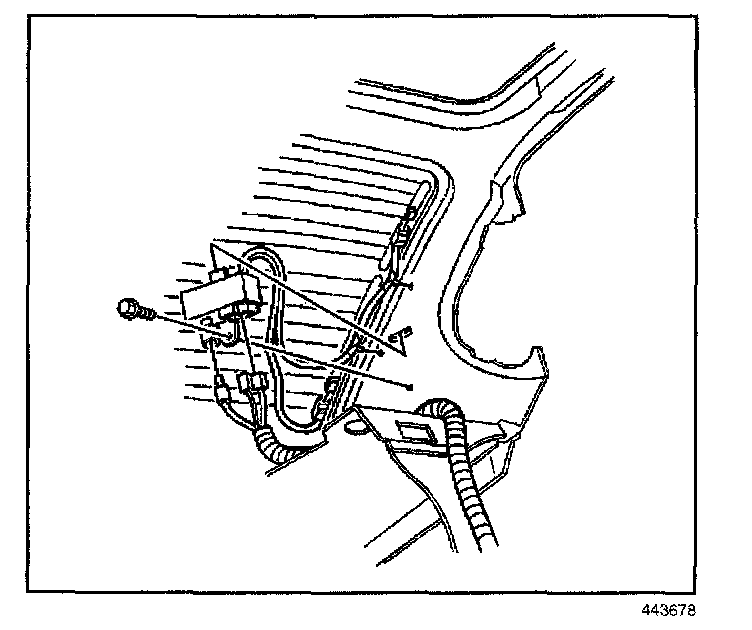

REMOVAL PROCEDURE




1. Remove the right rear upper quarter trim panel.
2. Disconnect the radio antenna coaxial cable from the antenna module.
3. Disconnect the electrical connectors from the antenna module.
4. Remove the bolt from the antenna module.
5. Remove the antenna module from the right quarter inner panel.

INSTALLATION PROCEDURE




1. Position the antenna module to the right quarter inner panel.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the bolt to the antenna module.

Tighten
Tighten the antenna module bolt to 6 N.m (53 lb in).

3. Connect the electrical connectors to the antenna module.
4. Connect the radio antenna coaxial cable to the antenna module.
5. Install the rear quarter upper trim panel.
