Power Window Switch Replacement - Rear Door

REMOVAL PROCEDURE

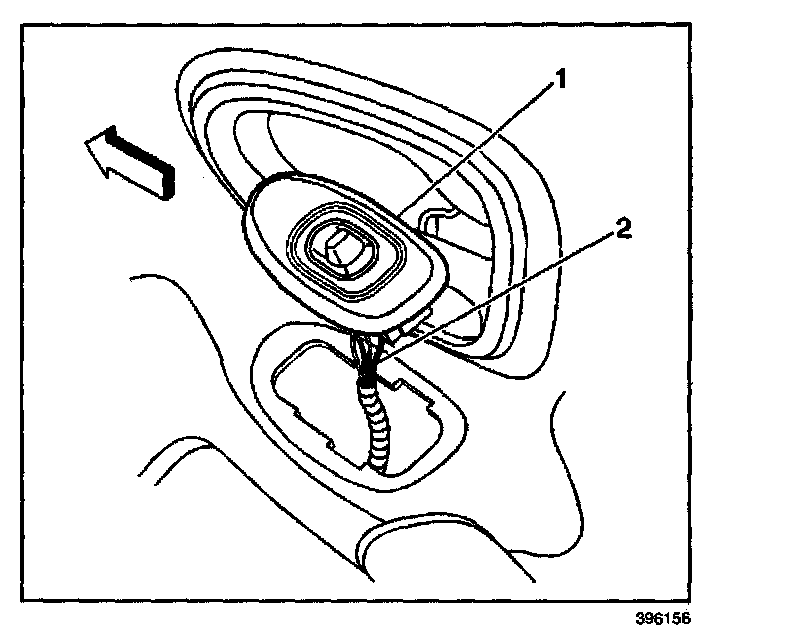

1. Using a small flat-bladed tool, at the front of the switch, push in and lift up to release the front clip.
2. Remove the switch bezel from the door trim panel.
3. Disconnect the wire harness connector (2) from the rear door power window switch.
4. Remove the rear door power window switch.

INSTALLATION PROCEDURE




1. Position and connect the wire harness connector (2) to the rear door power window switch (1).
2. Install the rear door power window switch (1), pressing into place until fully seated.
