Air Register: Service and Repair

AIR OUTLET REPLACEMENT - DEFROSTER

REMOVAL PROCEDURE

1. Remove the cross vehicle beam.

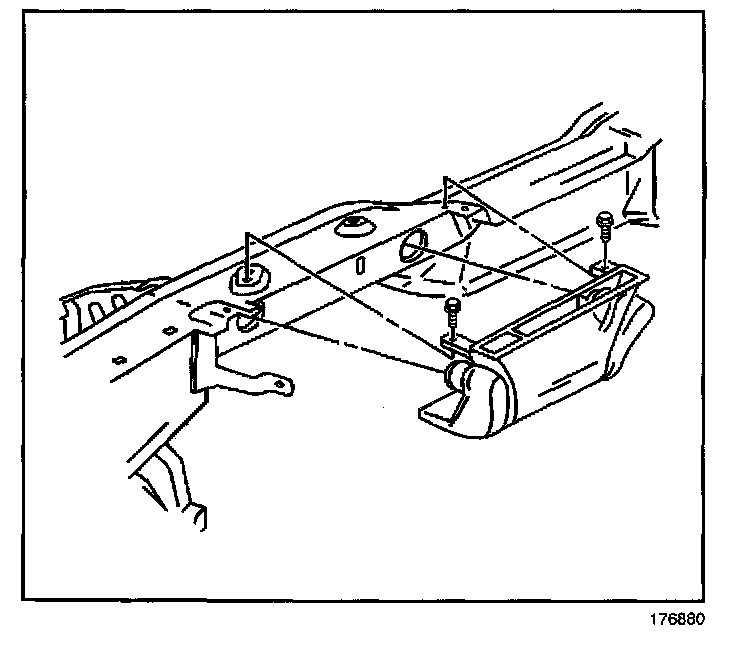

2. Remove the screws and the defroster air distribution duct.

INSTALLATION PROCEDURE

1. Install the defroster air distribution duct.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the mounting screws.

Tighten
Tighten the air distribution duct screws to 1.5 N.m (13 lb in).

3. Install the cross vehicle beam.
