Speaker
Speaker - LF Door:

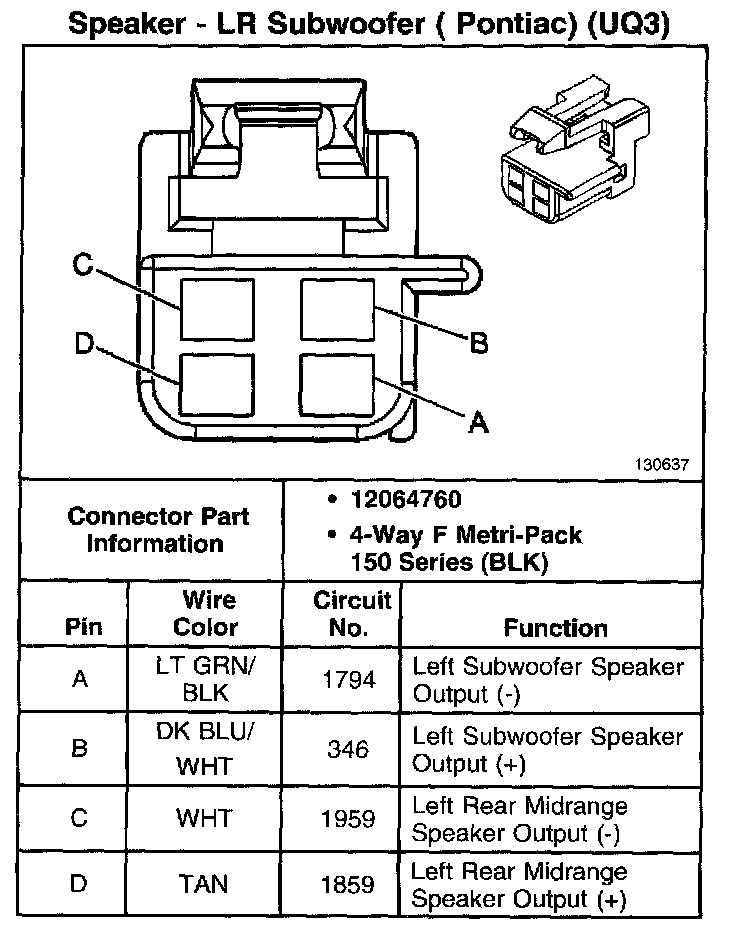

Speaker - LR Subwoofer (Pontiac) (UQ3):
Speaker - LR Door:
Speaker - RF Door:

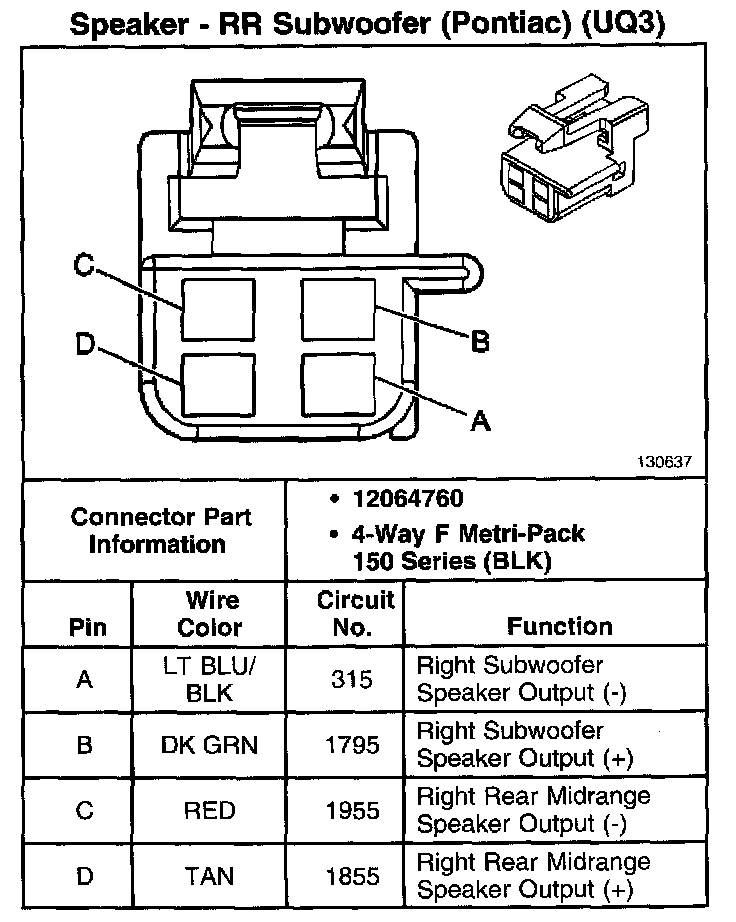

Speaker - RR Subwoofer (Pontiac) (UQ3):
Speaker - RR Door:
Tweeter - LF Door:
Tweeter - RF Door:
"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID".
RPO Codes
