Deflector Replacement - Instrument Panel Air
REMOVAL PROCEDURE 1.

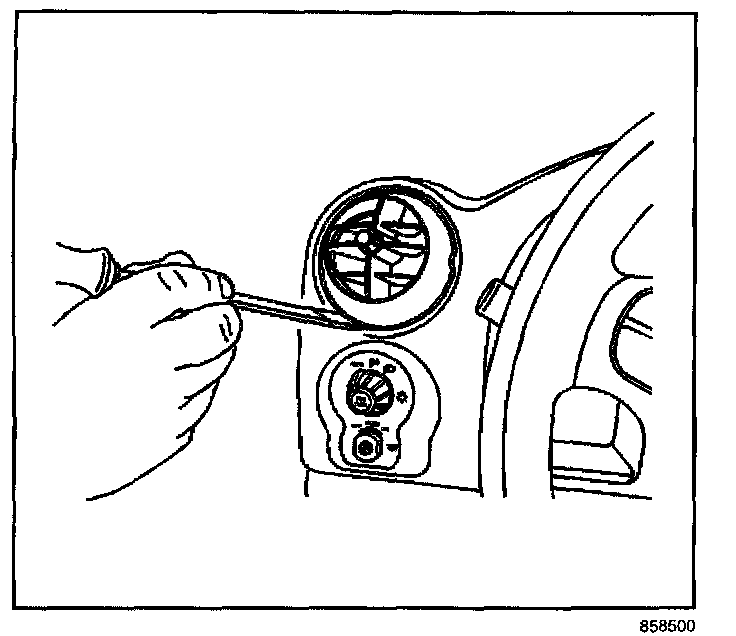

Use a flat-bladed tool in order to release the bottom of the deflector from the trim bezel.
2.
Remove the deflector from the IP trim bezel.
INSTALLATION PROCEDURE 1.

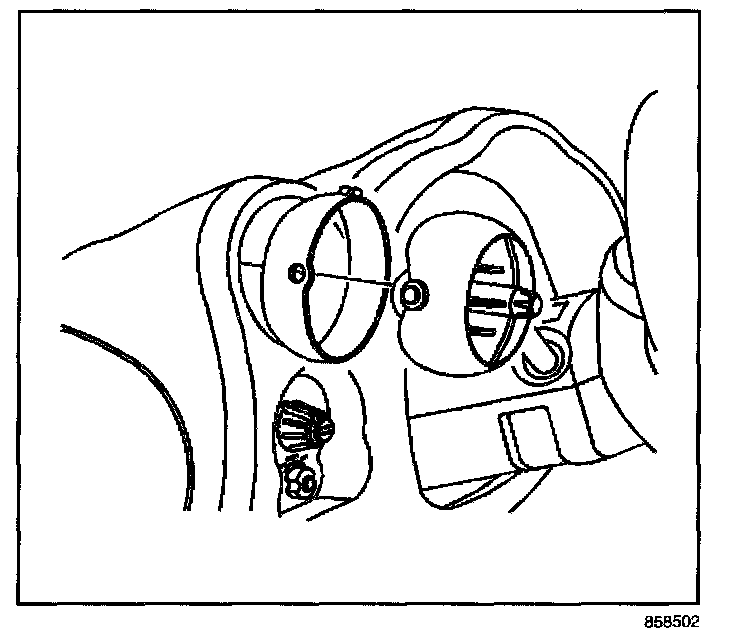

Install the deflector to the IP trim bezel.
2.
Push the deflector until the deflector is seated.
3.
Inspect the deflector for proper operation
