Windshield Washer Spray Nozzle: Service and Repair

WASHER NOZZLE REPLACEMENT - REAR

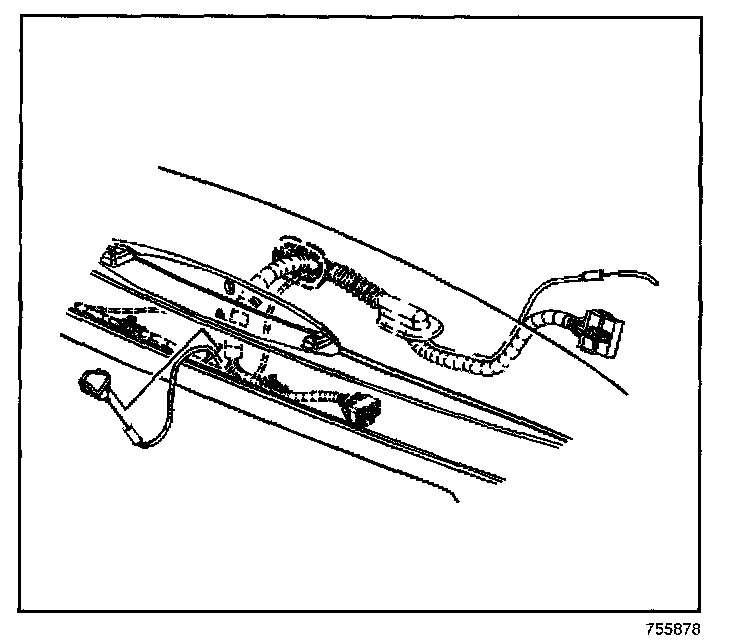

REMOVAL PROCEDURE




1. Apply tape to the area around the rear washer nozzle.
2. Using a small flat-bladed tool, remove the rear washer nozzle from the liftgate.
3. Remove the rear washer hose from the rear washer nozzle.
4. Remove the rear washer nozzle from the liftgate.

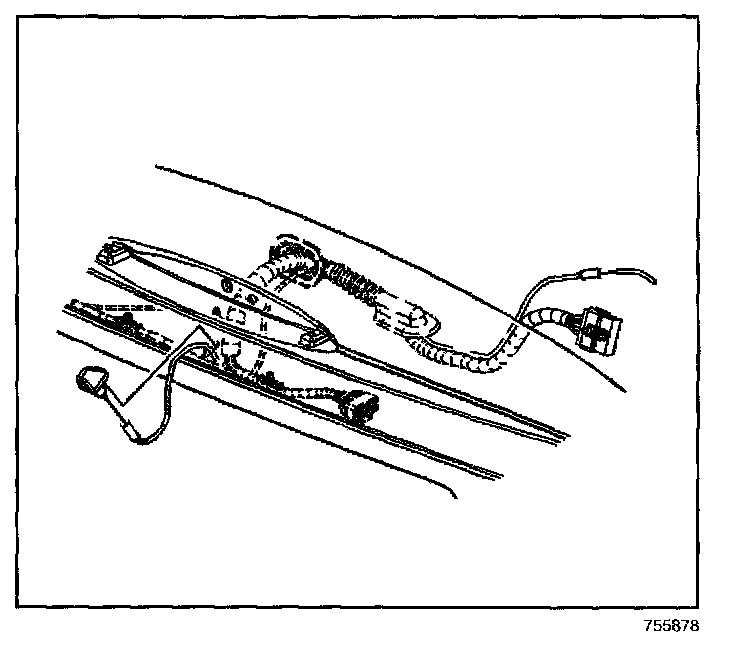

INSTALLATION PROCEDURE




1. Install the rear washer hose to the rear washer nozzle.
2. Position the rear washer nozzle to the liftgate opening pressing in until fully seated.
3. Remove the tape from around the rear washer nozzle area.
