Engine

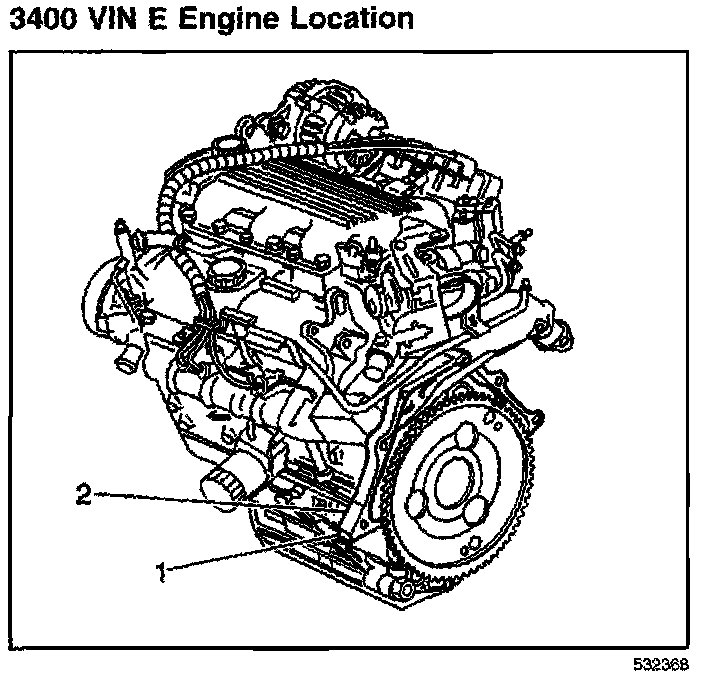

3400 VIN E Engine Location:

The primary (1) and optional (2) location of the VIN derivative for the 3400 LA1 engine is on the lower left front transaxle mounting surface.

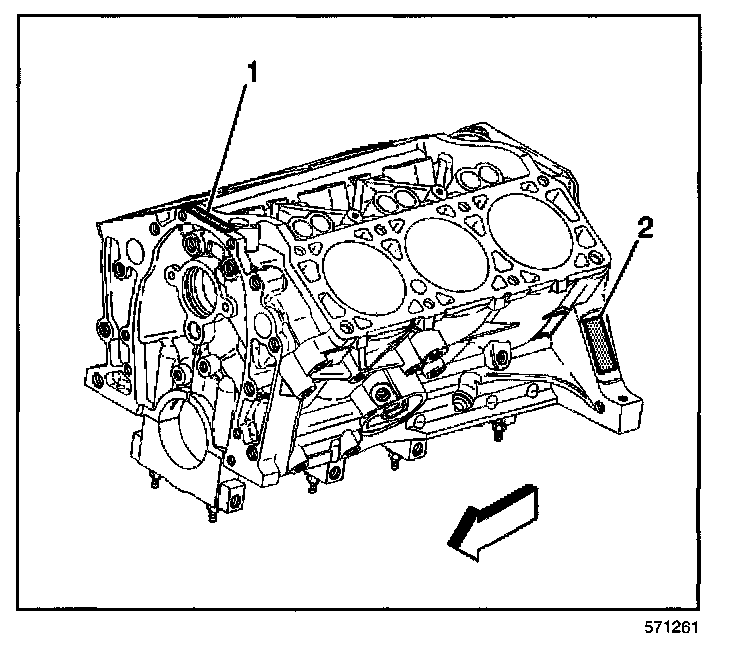

The primary location (1) of the Engine ID for the 3400 LA1 engine is on the top front of the engine block. The optional (2) location is on lower left front transaxle mounting surface.

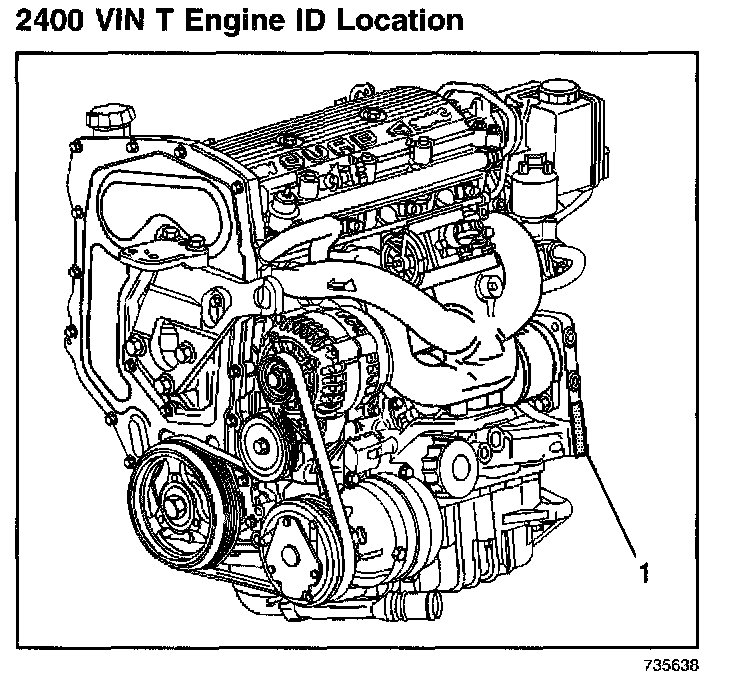

2400 VIN T Engine ID Location:

The location of the Engine ID and VIN Derivative (1) for the 2400 LD9 engine is on left side of the engine next to the starter motor.

For a description of the RPO Code(s) shown in this article/image, refer to the RPO Code List found at Vehicle/Application ID RPO Codes
