Transmission

Transmission ID And VIN Derivative Location:

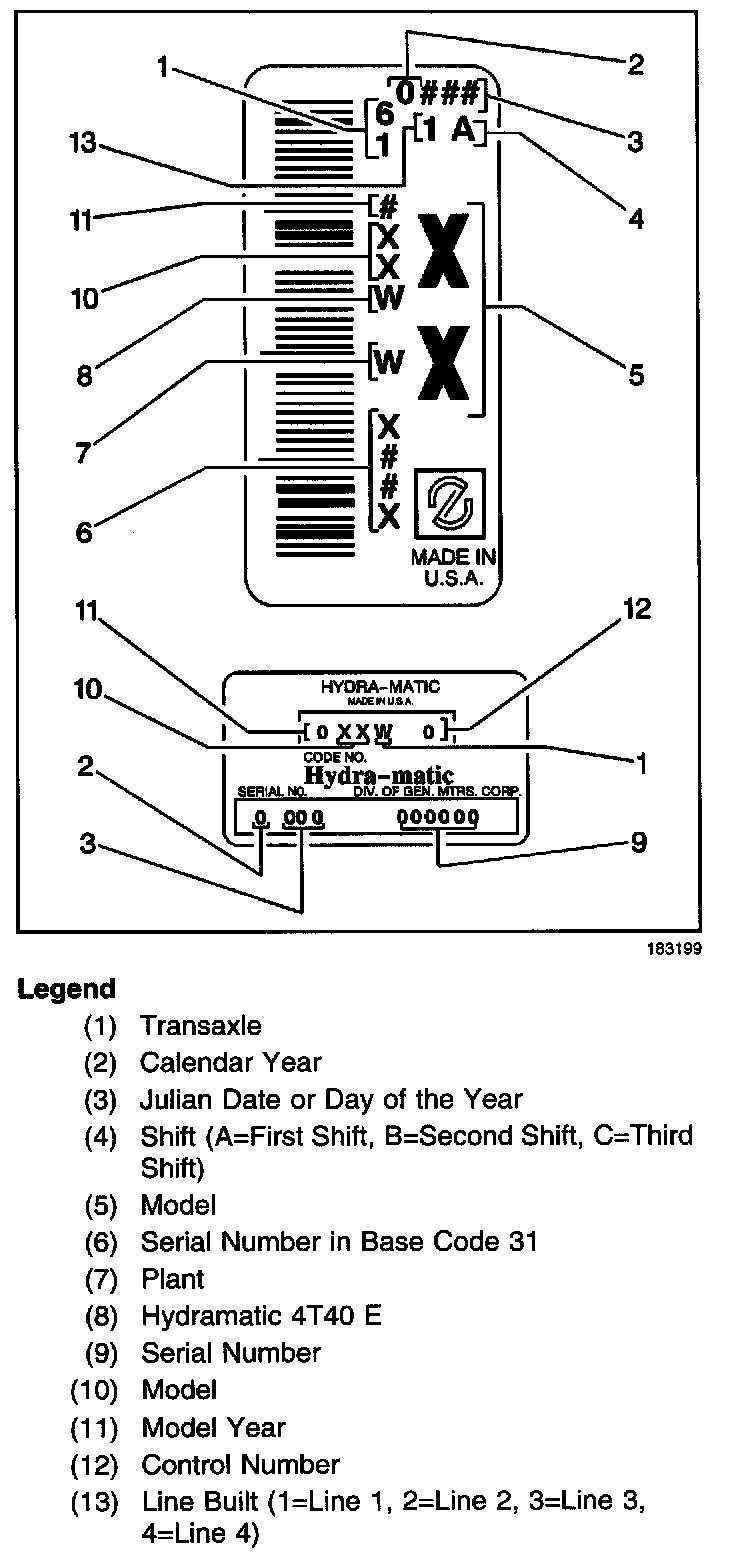

All automatic transmissions have a metal identification (ID) nameplate (1) attached to the case exterior.

4T40E VIN Derivative Location:

Vehicle Identification Number (VIN) derivative location (1).

Alternate Stamp Location:

Alternate hammer stamp location (1).

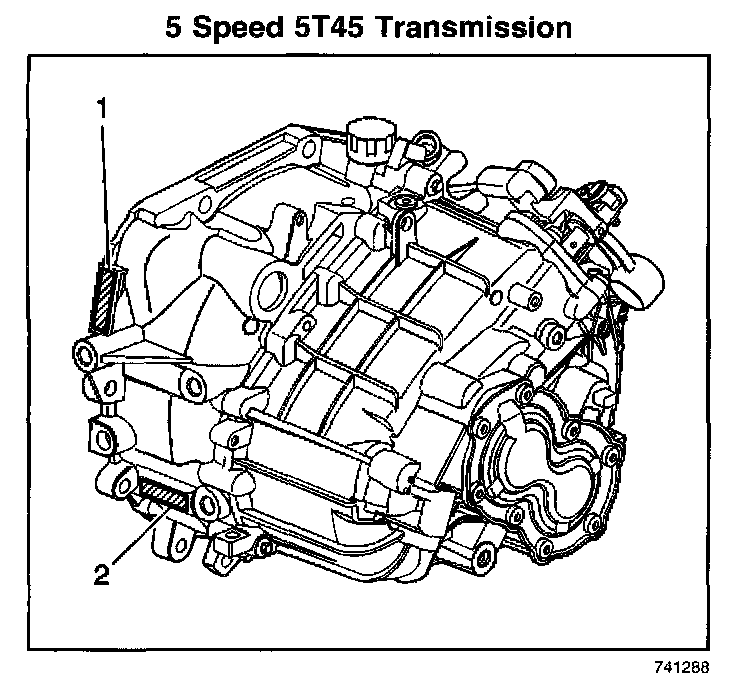

5 Speed 5T45 Transmission:

Vehicle Identification Number (VIN) derivative machine marked location (1).
Vehicle Identification Number (VIN) derivative hand stamped location (2).
