Grille: Service and Repair

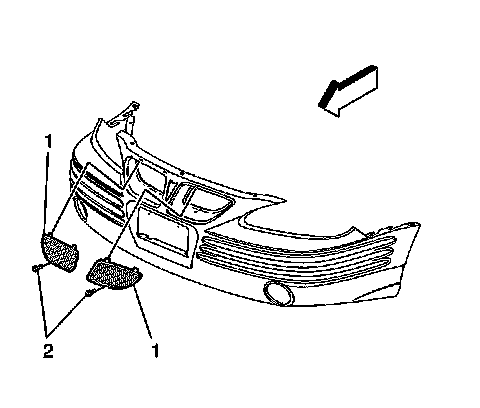

Grille ReplacementRemoval Procedure 1.
Remove the
grille retaining screw (2).
2.
Remove the grille assembly (1) from the front fascia.
Installation Procedure 1.
Install the grille assembly (1) to the front fascia.
Notice: Refer to Fastener Notice in Service Precautions.
2.
Install the
grille retaining screw (2).
Tighten the grille retaining screw to 2 N.m (18 lb in).
