Power Mirror Switch: Service and Repair

REMOVAL PROCEDURE




1. Remove the accessory switch plate from the door trim panel.

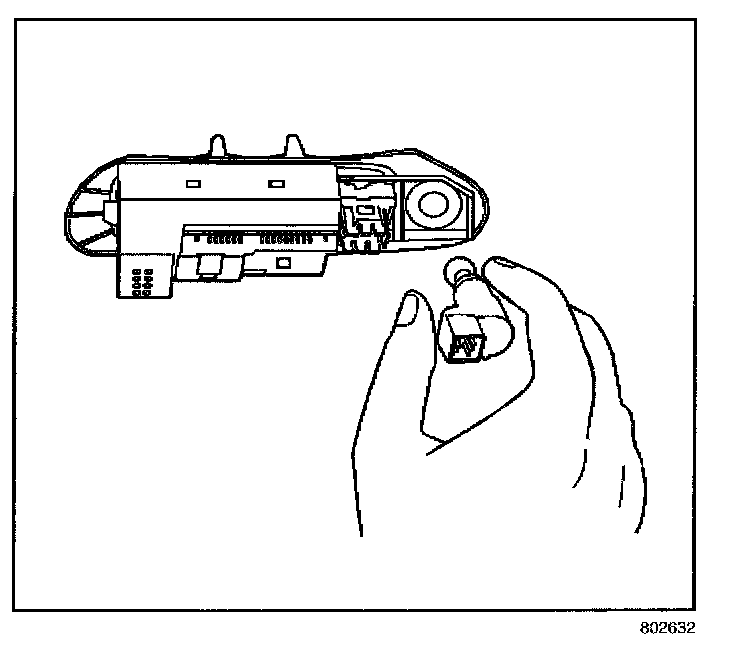

2. With a small flat-bladed tool release the inside retaining tabs for the power mirror switch.
3. Press the power mirror switch out of the accessory switch plate.

INSTALLATION PROCEDURE




1. Install the power mirror switch to the accessory switch plate.
2. Press the power mirror switch into the bezel until fully seated.
3. Install the accessory switch plate to the door trim panel.
