Power Seat Switch: Service and Repair



Seat Switch Replacement - Power

Removal Procedure




1. Adjust the front bucket seat to the full up position in order to gain access to the power seat switch.

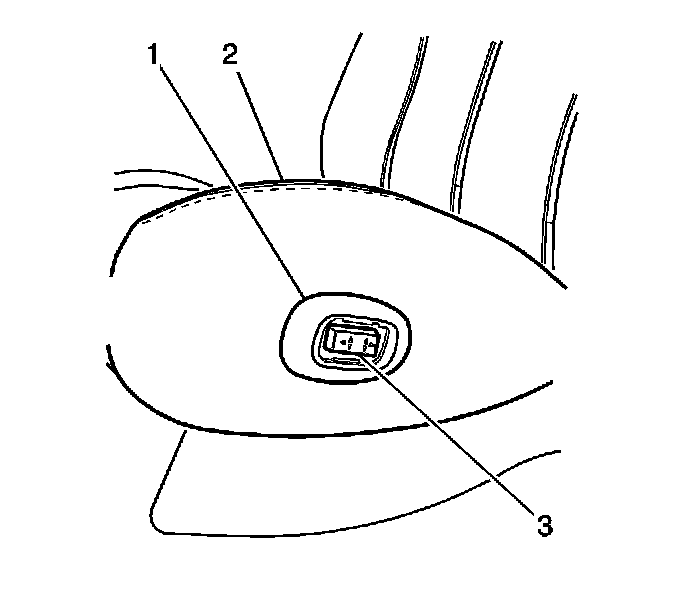

2. Pull the bezel from the power seat switch.




3. Adjust the front seat cushion cover in order to gain access to the power seat switch. Refer to Seat Cushion Cover Replacement - Front.

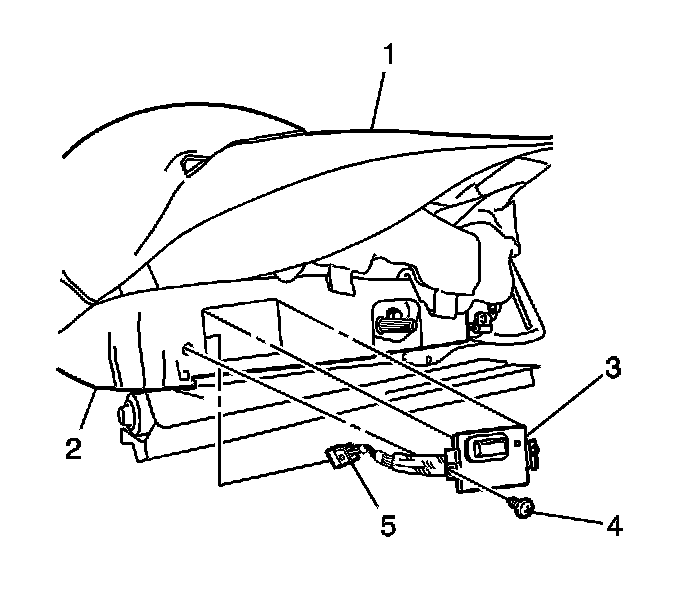

4. Remove the power seat switch screws.

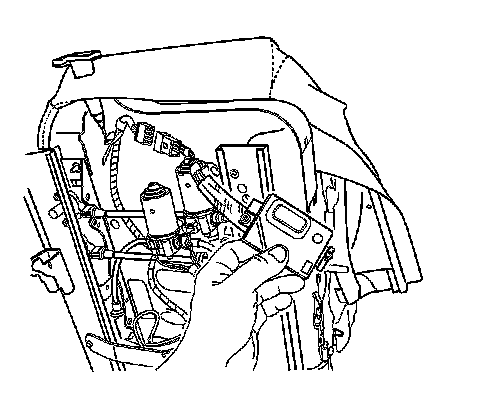

5. Disconnect the electrical connector from the power seat switch.
6. Remove the power seat switch from the seat cushion frame.

Installation Procedure

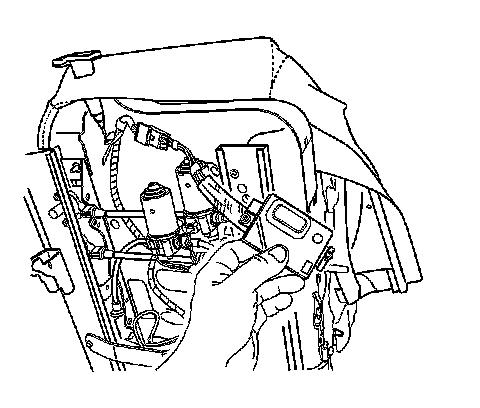

1. Connect the electrical connector to the power seat switch.




2. Position the power seat switch to the seat cushion frame.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the power seat switch screws.

Tighten the screws to 3 N.m (27 lb in).




4. Adjust the front seat cushion cover. Refer to Seat Cushion Cover Replacement - Front.
5. Align the bezel to the power seat switch and press into place until fully seated.
6. Adjust the front bucket seat to the original position.
