Brake Rotor Replacement- Front

Removal Procedure

1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the tire and wheel assembly.
3. Remove the caliper bracket.

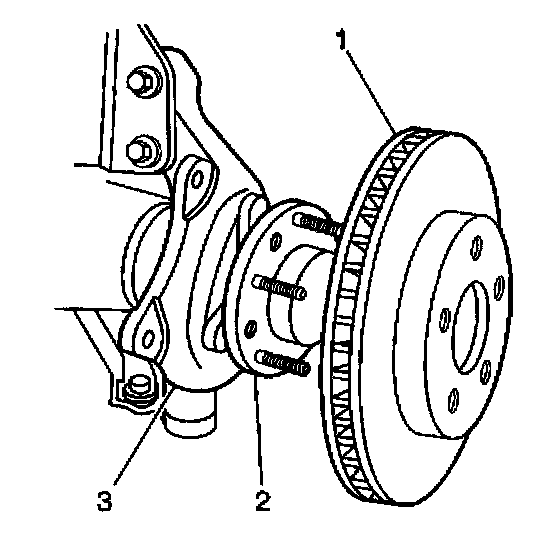

4. Remove the brake rotor (1).
5. Clean the metal contact surfaces between the brake rotor and the hub bearing flange (2).

Installation Procedure

1. Install the brake rotor (1).
2. Install the caliper bracket.
3. Install the tire and wheel assembly.
4. Lower the vehicle.
