Defroster Grille Replacement
DEFROSTER GRILLE REPLACEMENTREMOVAL PROCEDURE 1.
Release the defroster grille retainers from the Instrument Panel (IP) using a small flat-bladed tool.
2.

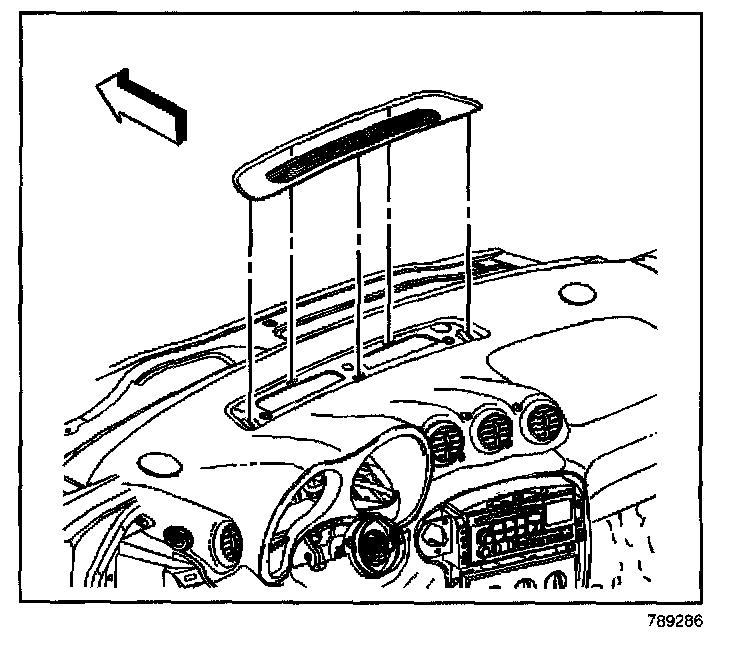

Remove the defroster grille from the IP by pulling up and out.
INSTALLATION PROCEDURE 1.
Position the defroster grille to the IP.
2.
Install the defroster grille to the IP. Press the grille into place until fully seated.
