Door Switch: Service and Repair

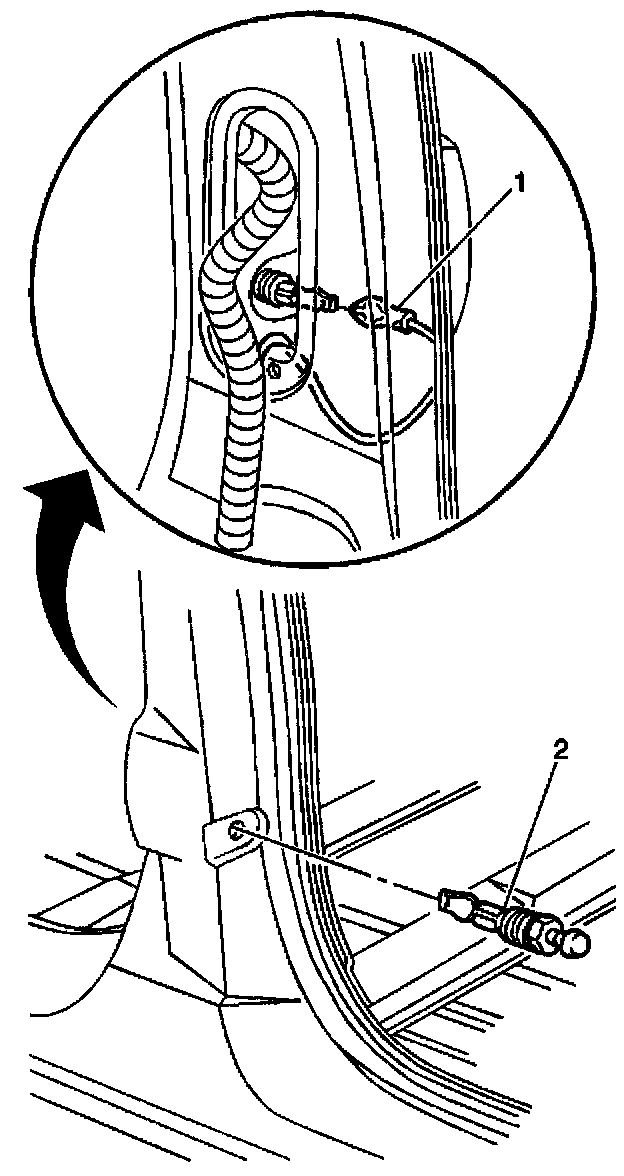

DOOR JAMB SWITCH REPLACEMENT - REARREMOVAL PROCEDURE 1.
Use a small, flat-bladed tool to remove the door jamb switch (2).
2.
Disconnect the electrical connector from the door jamb switch.
INSTALLATION PROCEDURE 1.
Connect the electrical connector to the door jamb switch.
2.
Press in on the door jamb switch (2) until fully seated.
