Ignition Switch Lock Cylinder - Dash Mounted

REMOVAL PROCEDURE

IMPORTANT: Perform the BCM theft deterrent relearn procedure whenever you replace the ignition switch lock cylinder. For more information refer to Accessories and Optional Equipment/Antitheft and Alarm Systems/Service and Repair/ Service and Repair




1. Disconnect negative battery cable.
2. Remove Instrument Panel (IP) accessory trim plate.
3. Insert the key and turn the ignition switch lock cylinder to the ON position.
4. If the cylinder does not rotate or is seized, follow the procedure in the ignition switch replacement.

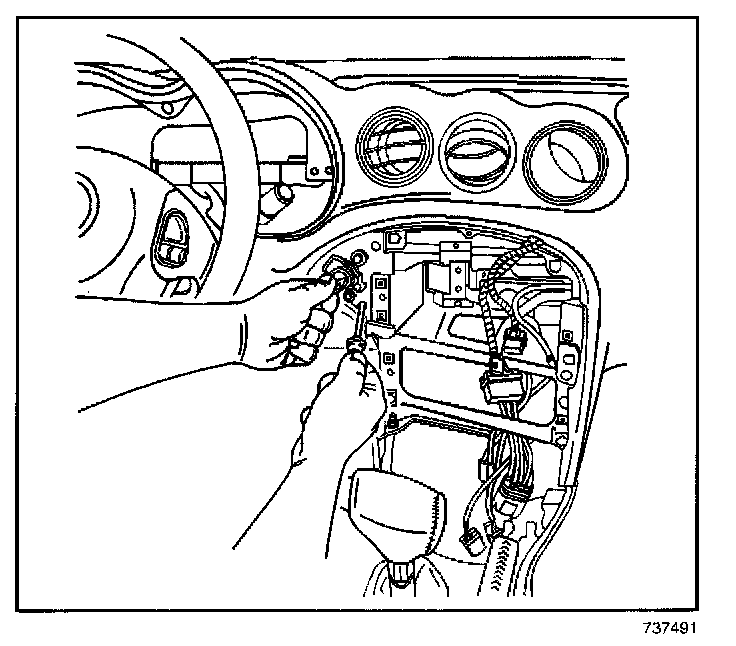

5. Using a small curved tool, depress and hold the retaining tab on the ignition switch lock cylinder.
6. Using the key as an aid, pull to remove the lock cylinder from the switch.
7. Remove the key from the lock cylinder.

INSTALLATION PROCEDURE




1. Code the ignition switch lock cylinder, if necessary. Refer to Key and Lock Cylinder Coding
2. Insert the key and turn the lock cylinder to the ON position.

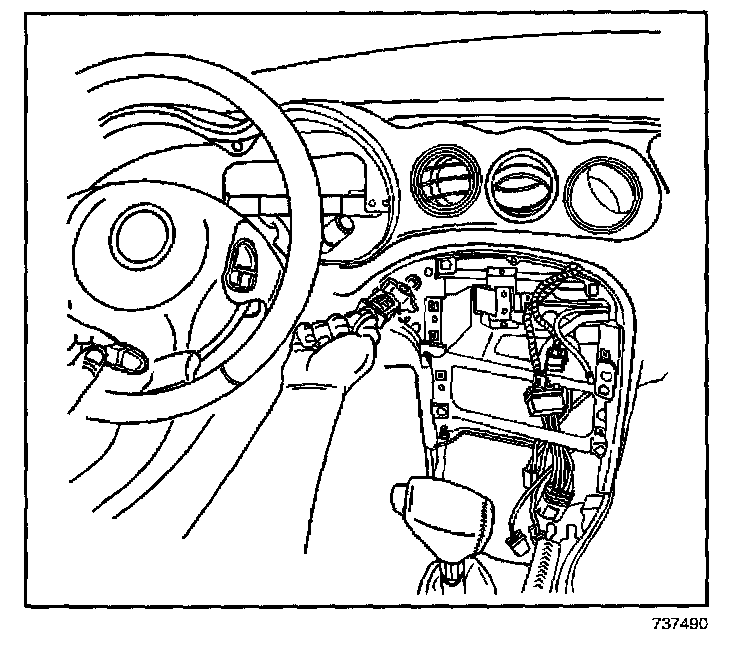

3. Align the lock cylinder to the ignition switch, then press the cylinder into place.
4. Turn the key to the OFF position and remove the key.
5. Install the IP accessory trim plate.
6. Connect the negative battery cable.
7. If a new lock cylinder was installed, perform the BCM theft deterrent relearn procedure. Accessories and Optional Equipment/Antitheft and Alarm Systems/Service and Repair/ Service and Repair
