Right Front

REMOVAL PROCEDURE




1. Remove the accessory switch plate from the door trim panel.

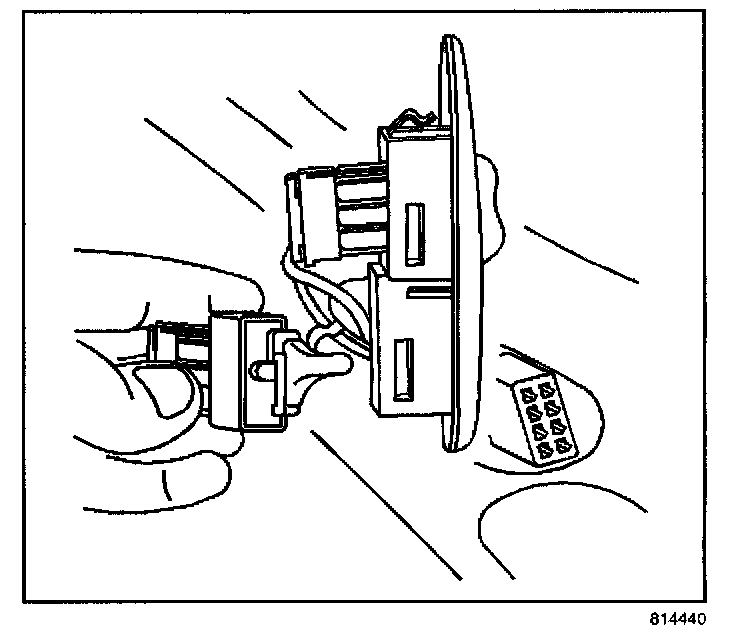

2. Disconnect the electrical connector from the power window switch.
3. Release the power window switch retainers.
4. Remove the power window switch from the accessory switch plate.

INSTALLATION PROCEDURE




1. Install the power window switch to the accessory switch plate.
2. Press the power window switch into the accessory switch plate until fully seated.
3. Connect the electrical connector to the power window switch.
4. Install the accessory switch plate to the door trim panel.
