Power Sunroof Express Module Replacement

Power Sunroof Express Module Replacement

Removal Procedure






1. Remove the headliner. Refer to Headlining Trim Panel Replacement .

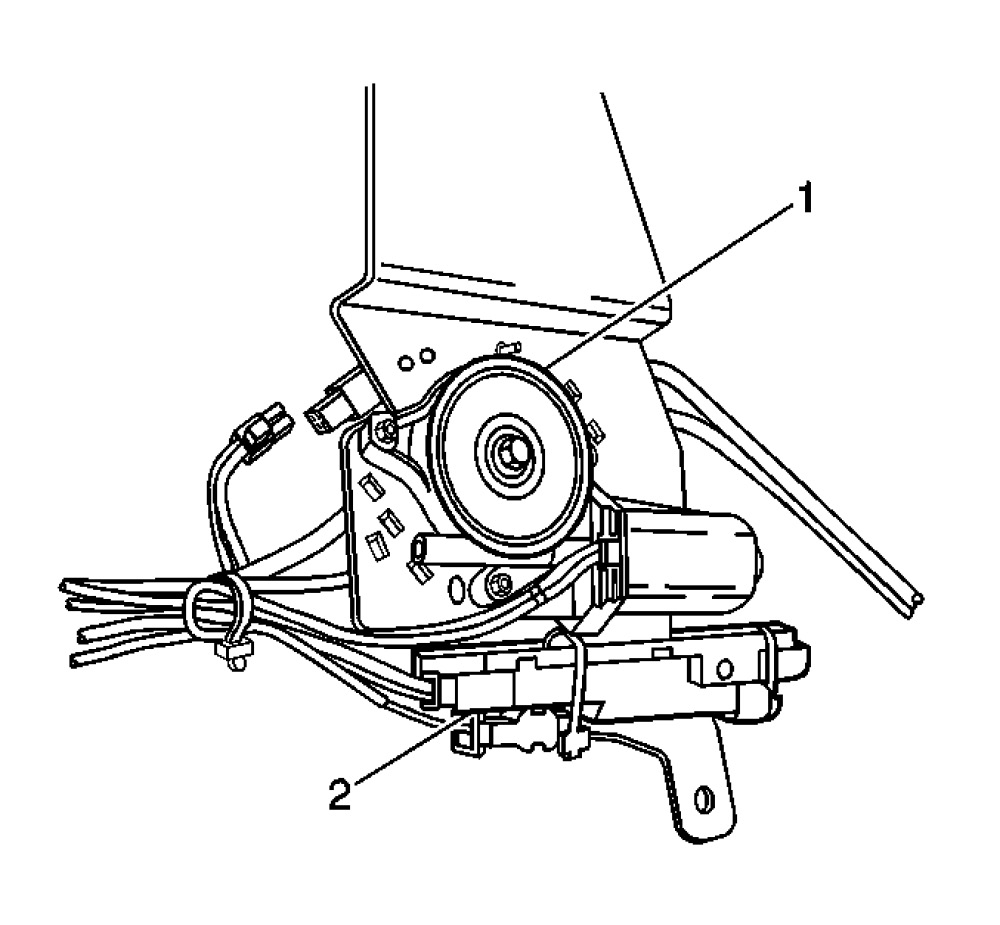

2. Remove the nylon tie straps located from both ends of the express module (2).

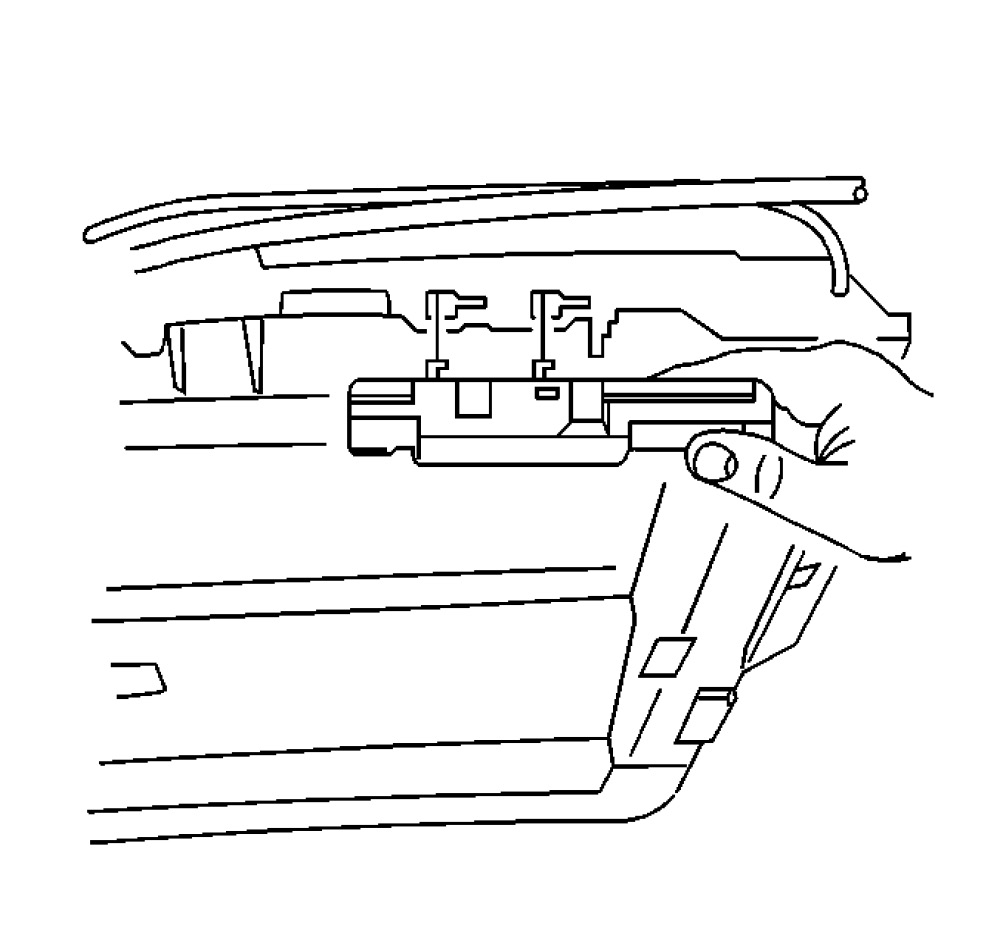

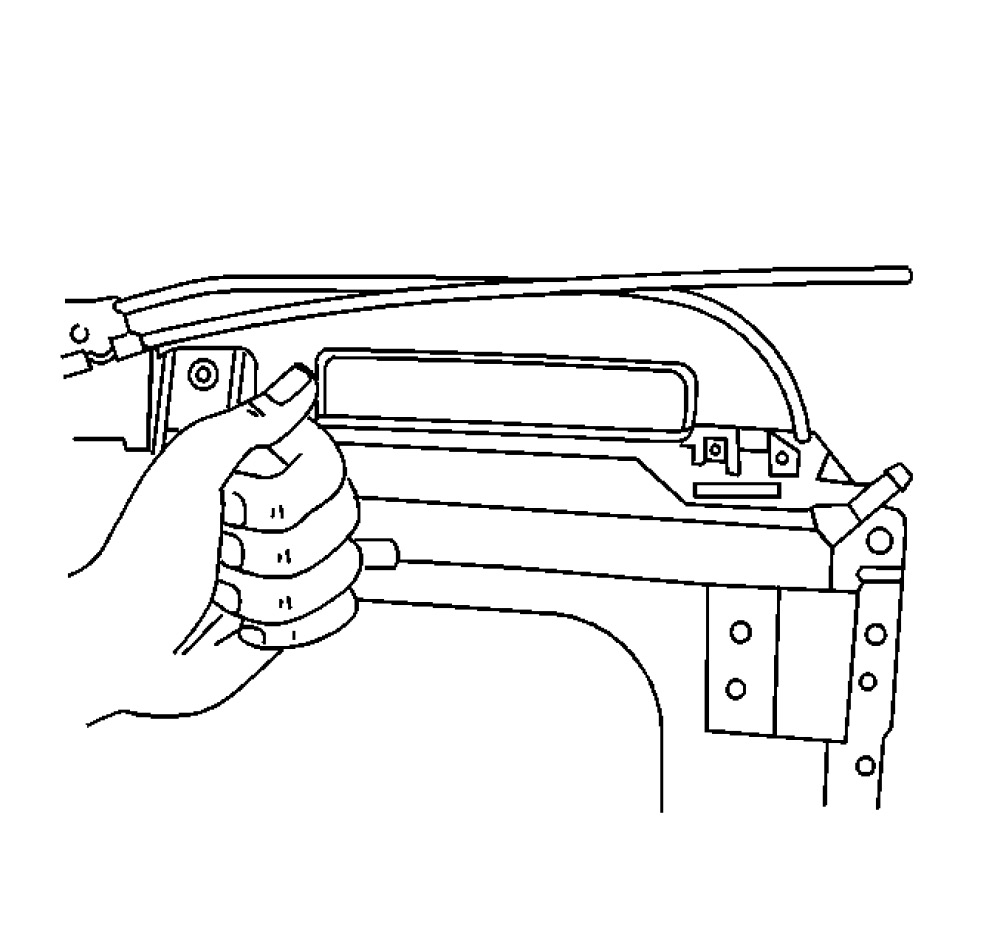

3. Release the express module retainers from the metal bracket by sliding the express module toward the left side of the vehicle.






4. Remove the express module from the sunroof module.
5. Disconnect the electrical connectors from the express module.
6. Remove the express module from the vehicle.

Installation Procedure






1. Position the express module to the sunroof module.
2. Connect the electrical connectors to the ends of the express module.






3. Install the express module to the sunroof module by sliding it to the right to engage the retainers.






4. Install the nylon tie straps at both ends of the express module (2).
5. Check the operation of the sunroof module to all positions.
6. Install the headliner. Refer to Headlining Trim Panel Replacement .
