Power Mirror Switch: Service and Repair

POWER MIRROR SWITCH REPLACEMENT

REMOVAL PROCEDURE




1. Remove the front door trim panel.

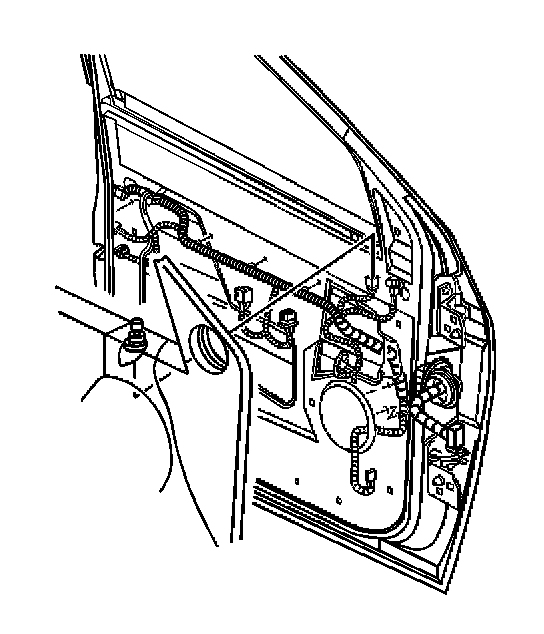

2. Disconnect the electrical connector from the power mirror switch.

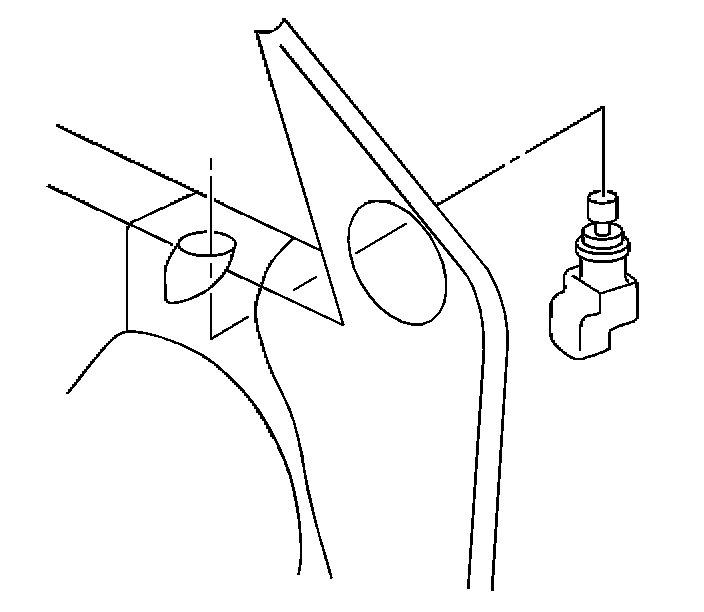

3. Remove the power mirror switch from the front door inner trim panel.

INSTALLATION PROCEDURE

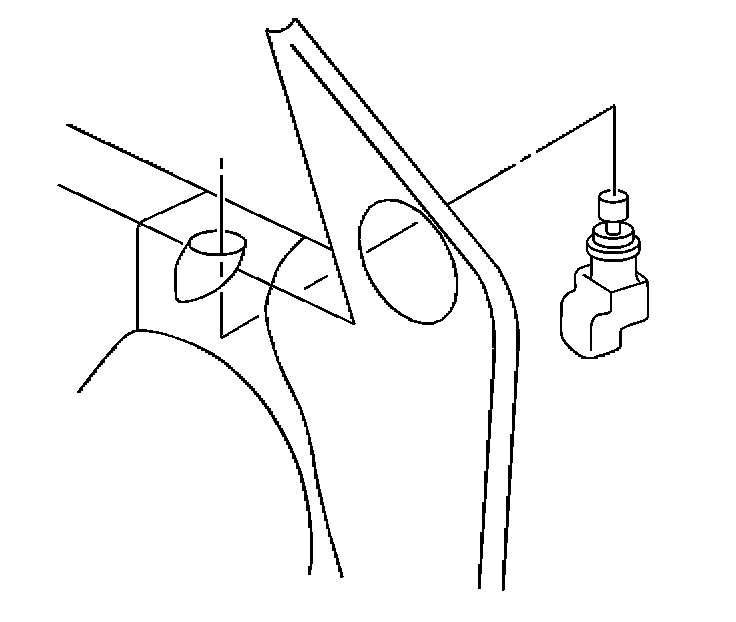

1. Install the power mirror switch to the front door inner trim panel, pressing into place until fully seated.

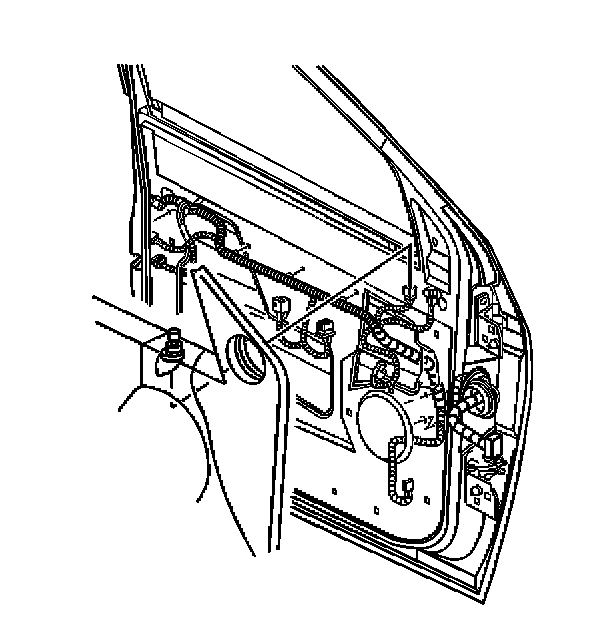

2. Connect the electrical connectors to the power mirror switch.
3. Install the front door trim panel.
