Seat Back Frame Replacement - Front

SEAT BACK FRAME REPLACEMENT - FRONT

REMOVAL PROCEDURE




1. Remove the front seat.
2. Remove the front seat back.
3. Remove the front seat back cushion cover.

IMPORTANT: Remove the front seat cover and pad as one piece, if replacing the front seat back frame only.

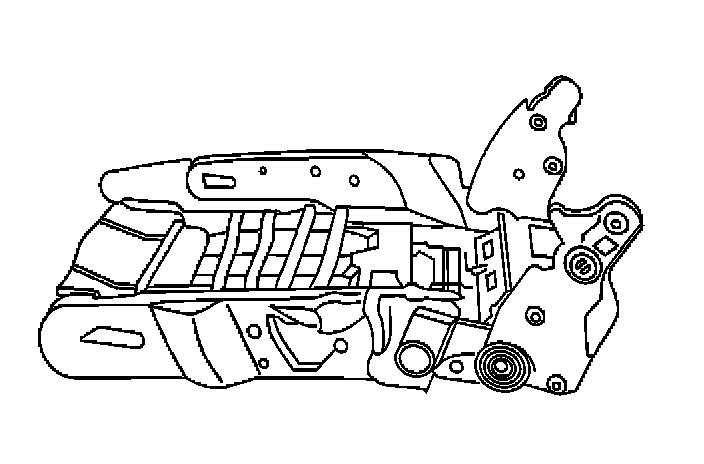

4. Remove the front seat back pad from the front seat back frame.
5. Remove the front seat lumbar from the front seat back, if required.

INSTALLATION PROCEDURE




1. Install the front seat lumbar to the front seat back, if required.

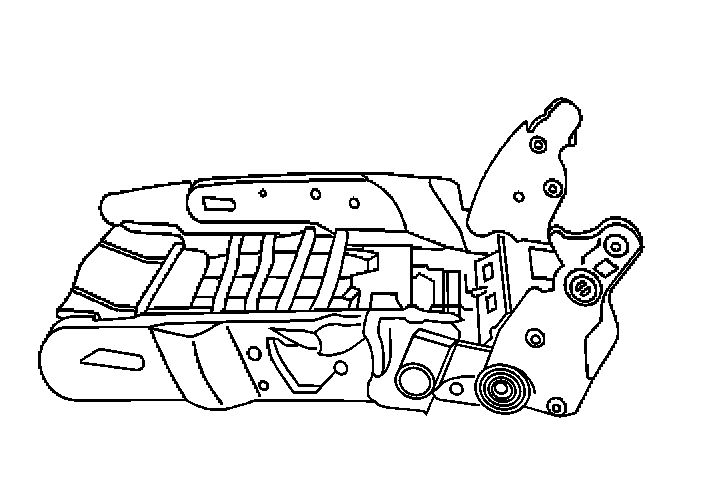

2. Install the front seat back pad to the front seat back frame.
3. Install the front seat back cushion cover.
4. Install the front seat back.
5. Install the front seat.
