Seat Back Recliner Handle Replacement - Front

SEAT BACK RECLINER HANDLE REPLACEMENT - FRONT

REMOVAL PROCEDURE

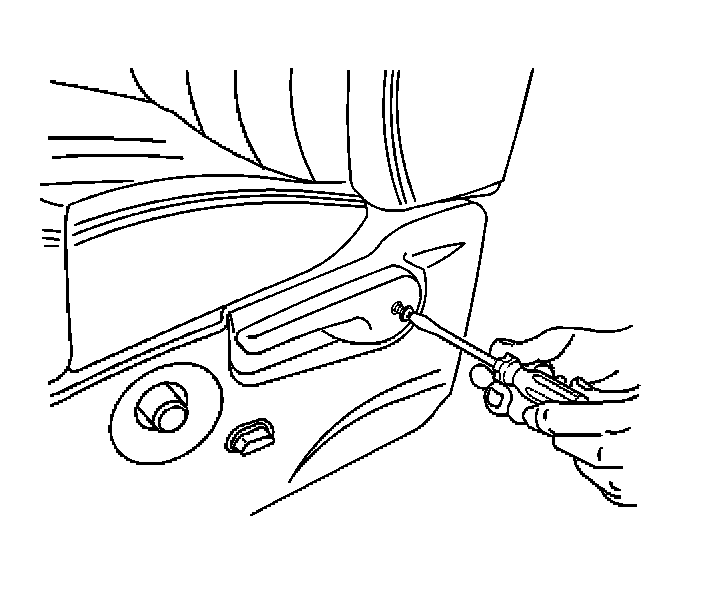

1. Remove the screw from the seat back recliner handle.

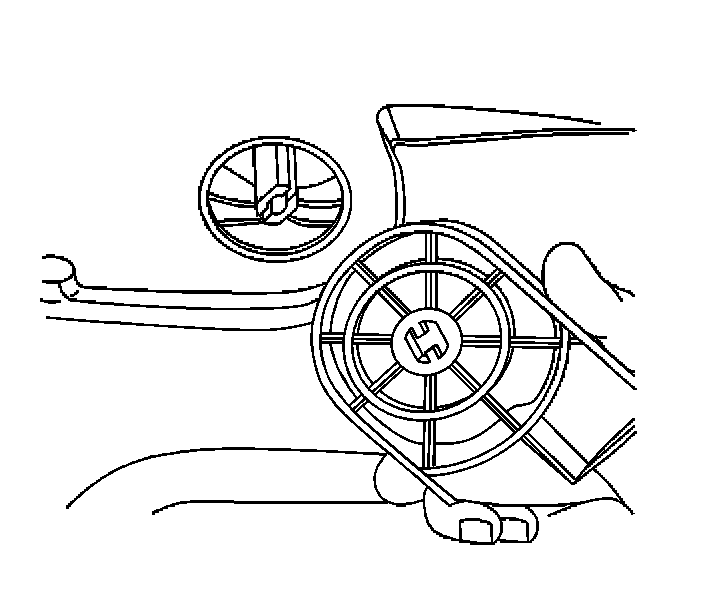

2. Remove the seat back recliner handle from the seat back recliner handle shaft.

INSTALLATION PROCEDURE

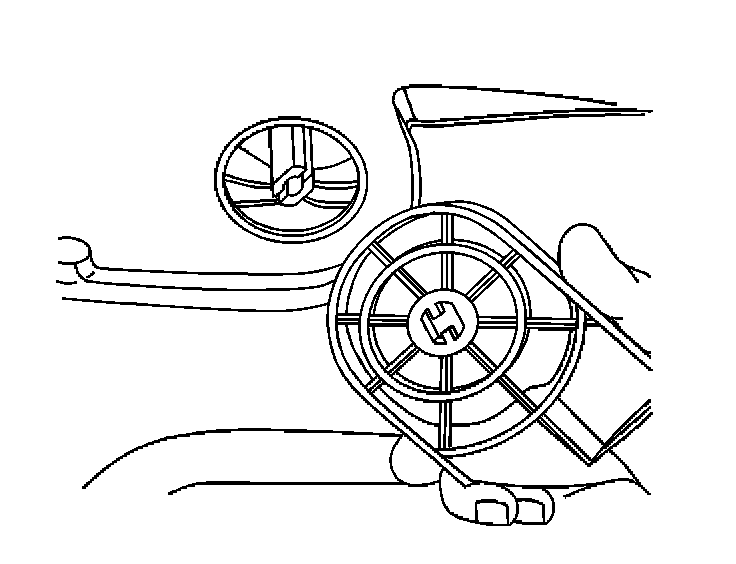

1. Position the seat back recliner handle to the seat back recliner handle shaft.

IMPORTANT: The keys on the recliner handle must properly align to the keyways on the recliner handle shaft.

2. Install the seat back recliner handle to the seat back recliner handle shaft pressing on until properly seated.

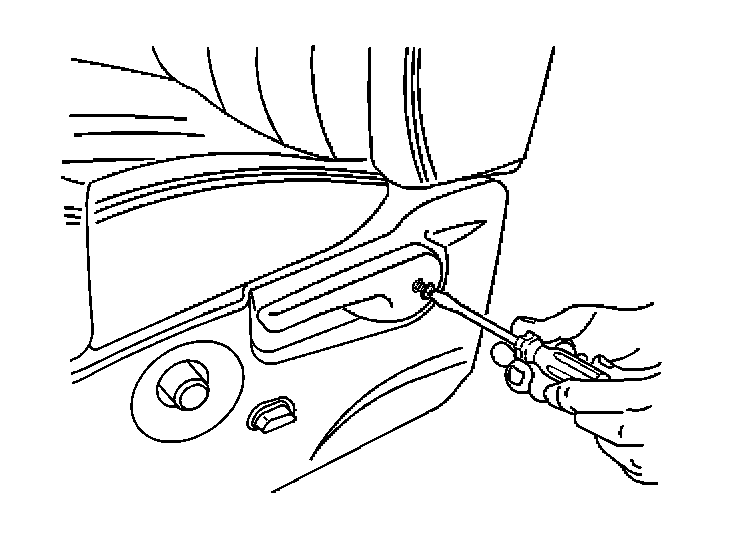

3. Install the screw to the seat back recliner handle.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the seat back recliner screw to 2 N.m (18 lb in).
