SEAT BACK REPLACEMENT - REAR (SPLIT BENCH)

REMOVAL PROCEDURE
1. Remove the split bench seat.
2. Remove the back trim panel from the rear seat.
3. Remove the outer trim panel from the rear seat cushion.

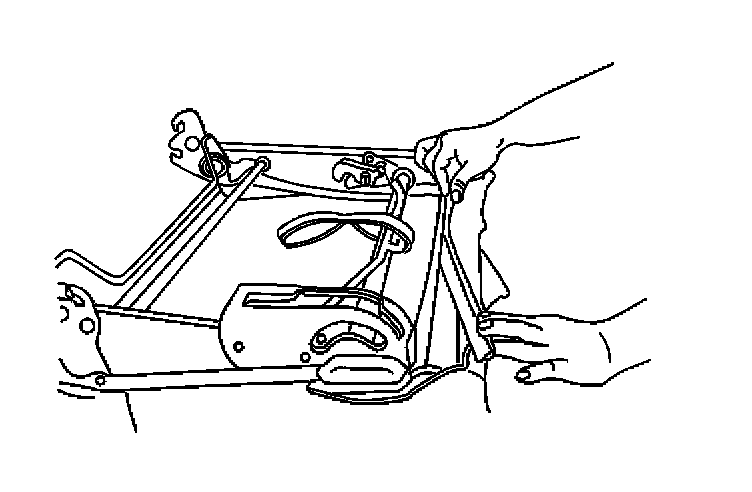

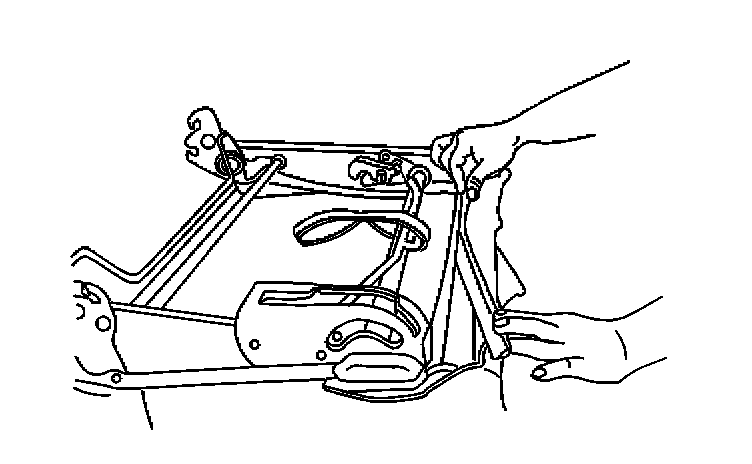

4. Remove the lower J-hook retainer and pull back the cushion cover to expose the recliner hinge and the center pivot point.

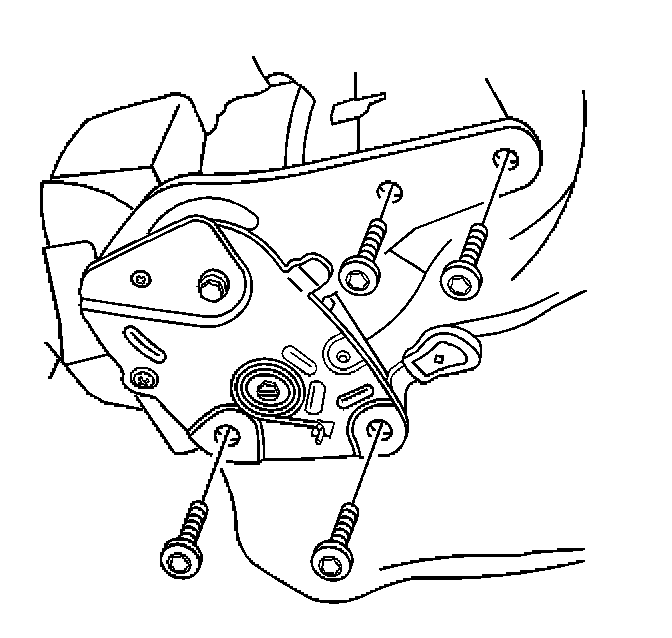

5. Remove the upper bolts from the seat back recliner hinge.

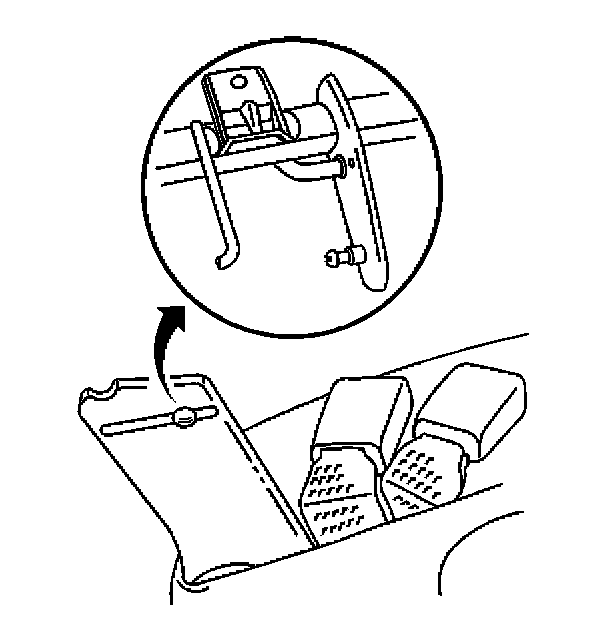

6. Remove the seat back from the inner pivot point by lifting up the outer end of the seat back. Use a quick upward twist to disengage the pivot stud from the pivot socket.

INSTALLATION PROCEDURE

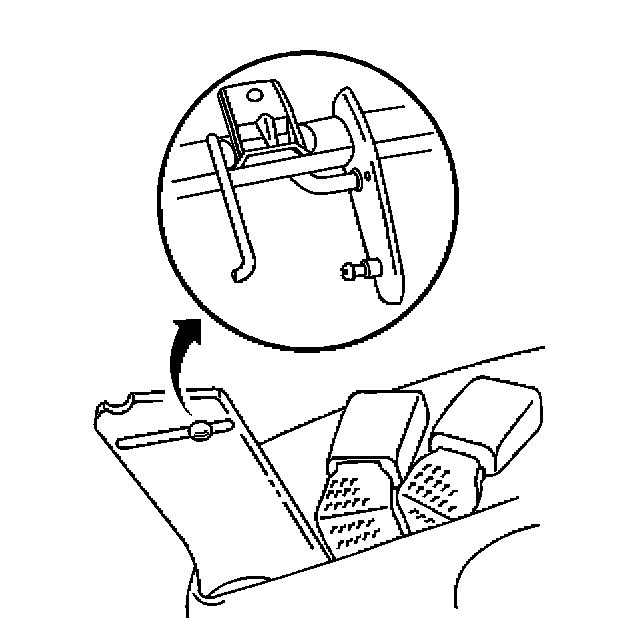

1. Place the rear seat back pivot stud to the rear seat pivot point.
2. Install the seat back to the pivot point. Press the seat back into the socket until fully seated.

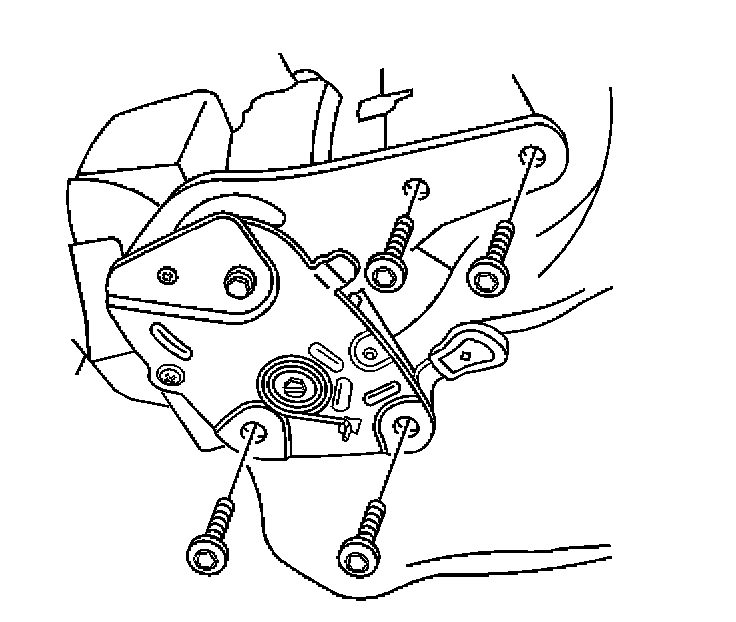

3. Install the bolts to the seat back recliner hinges.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the bolts to 40 N.m (30 lb ft).




4. Install the lower J-hook retainer.
5. Install the trim panel to the seat back.
6. Install the outer trim panel to the seat cushion.
7. Inspect the seat back for proper operation.
8. Install the split bench seat.
